EXT-LD14106BE1AX+DKRX24-MFT-T | Potable water Valve (BV) | 6" | 2-way | ANSI Class Consistent with 125 | Cv 1579 | Configurable Valve Actuator | Electrical fail-safe | AC/DC 24 V | 2-10 V | terminals | MFT/programmable | Belimo

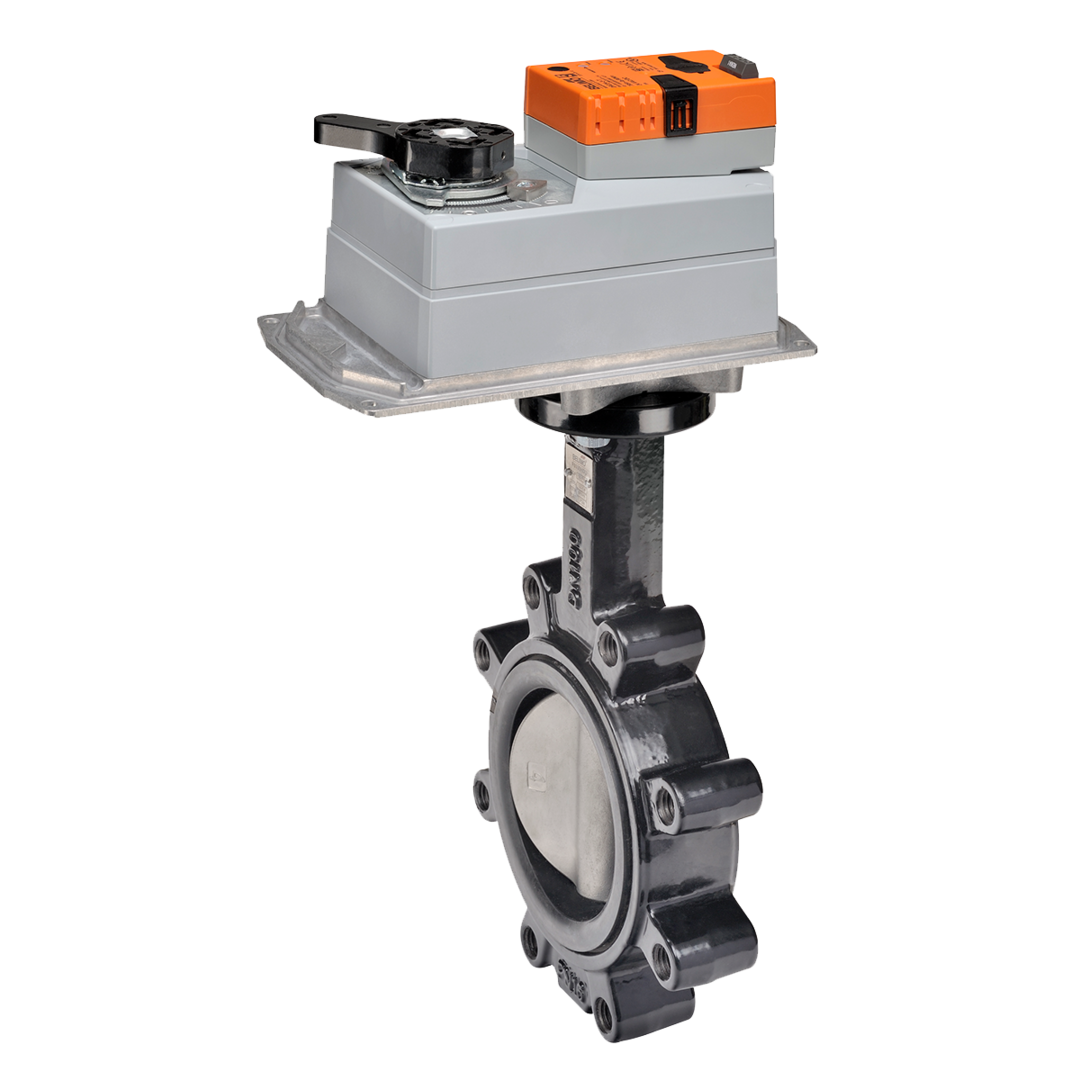

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EXT-LD14106BE1AX+DKRX24-MFT-T
Documents and manuals
Belimo EXT-LD14106BE1AX+DKRX24-MFT-T Documents
Overview
Details for EXT-LD14106BE1AX+DKRX24-MFT-T
Potable water valve (BV), 6", 2-way, ANSI Class Consistent with 125, Cv 1579 |Configurable Valve Actuator, Electrical fail-safe, AC/DC 24 V, 2...10 V, terminals, MFT/programmable
Specifications
- Actuator Type
- Electrical fail-safe
- ANSI Class
- Consistent with 125
- Control Type
- MFT/Programmable
- Controllable Flow Range
- 90B0 rotation
- Cv
- 1579
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- terminals
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Potable water
- Manual Override
- External push button
- Pattern
- 2-way
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 12 W
- Pressure Independent
- NO
- Product Type
- Combo
- Running Time (Fail-safe)
- <35 s
- Running Time (Motor)
- 150 s / 90B0
- Running Time range (Motor)
- 90...150 s
- Torque
- 90 Nm
- Valve Size
- 6" [150]
- Voltage AC/DC
- AC/DC 24 V
