EV075+LRX-E | Electr. 2-way PI-CCV Belimo Energy Valve™ | AC/DC 24 V | BACnet IP | BACnet MS/TP | Modbus RTU | Modbus TCP | MP-Bus | DN 3/4
$923.85
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: EV075+LRX-E
List Price
$2,053.00
$923.85
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

EV075+LRX-E | Electr. 2-way PI-CCV Belimo Energy Valve™ | AC/DC 24 V | BACnet IP | BACnet MS/TP | Modbus RTU | Modbus TCP | MP-Bus | DN 3/4"[20] | Internal thread | GPM 11 | Belimo

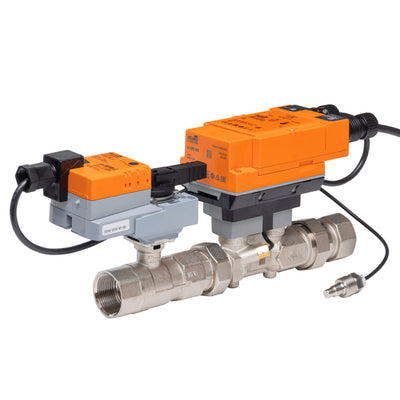

Belimo | EV075+LRX-E
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EV075+LRX-E

Documents and manuals

Belimo EV075+LRX-E Documents

Overview

Details for EV075+LRX-E

Electr. 2-way PI-CCV Belimo Energy Valve™ | AC/DC 24 V | BACnet IP | BACnet MS/TP | Modbus RTU | Modbus TCP | MP-Bus | DN 3/4"[20] | Internal thread | GPM 11

Specifications

Valve specifications
Angle of Rotation
90
End Fitting
Internal thread
Flow
11
Fluid
Chilled or hot water up to 60% glycol max (open loop/steam not allowed)
Pattern
2-way
PI-Technology
Electronic
Pressure Independent
YES
Sensor Technology
Ultrasonic with glycol and temperature compensation
Trim
Stainless steel
Valve Size
0.75" [20]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
  • BACnet IP
  • BACnet MS/TP
  • Modbus TCP
  • Modbus RTU
  • MP-Bus
  • DC 2...10 V
  • DC 0.5...10 V
  • Hybrid (communicative/analog)
  • Cloud
Degree of Protection
IP54 NEMA 1 UL Enclosure Type 1
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Running)
4 W
Running Time (Motor)
90 s
Voltage AC/DC
AC/DC 24 V
