EFX24-SR-S N4H | Damper Actuator | 270 in-lb | Spg Rtn | 24V | Modulating | SW | NEMA 4H | WITH HEATER OPTION | Belimo

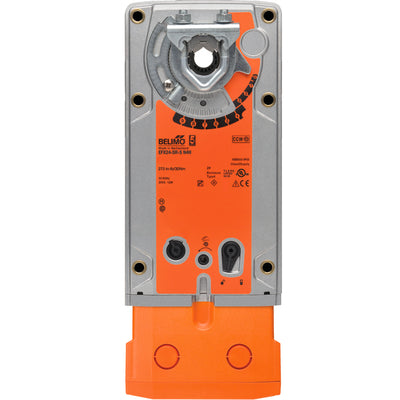

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EFX24-SR-S N4H
Documents and manuals
Belimo EFX24-SR-S N4H Documents
Overview
Details for EFX24-SR-S N4H
Damper Actuator | 270 in-lb | Spg Rtn | 24V | Modulating | SW | NEMA 4H | WITH HEATER OPTION
For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. A feedback signal is provided for position indication or master-slave applications. Two EF's can be piggybacked for torque loads of up to 540 in-lbs. Minimum 3/4" diameter shaft. OR Maximum of three EF's can be piggybacked for torque loads of up to 810 in-lbs. Minimum 1" diameter shaft. Master-Slave wiring for either configuration.Specifications
- Actuator Type
- Spring return
- Angle of Rotation
- 95
- Auxiliary Switches
- 2 x SPDT
- Control Type
- DC 2...10 V
- Degree of Protection
- IP66 NEMA 4 UL Enclosure Type 4
- Direction of Rotation (Fail-Safe)
- Reversible with cw/ccw mounting
- Electrical Connection
- terminals
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 4.5 W
- Power Consumption (Running)
- 8 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 95 s / 90B0
- Safety Function
- YES
- Torque
- 270 in-lb [30 Nm]
- Voltage AC/DC
- AC/DC 24 V
