EFX24-S N4H | Damper Actuator | 270 in-lb | Spg Rtn | 24V | On/Off | SW | NEMA 4H | WITH HEATER OPTION | Belimo

$949.50

Brand: BelimoSKU: EFX24-S N4H

List Price
~~$2,110.00~~

$949.50

Availability: This product is currently available to purchase

Contact us for price breaks on large quantities!

This item ships FREE*

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

EFX24-S N4H | Damper Actuator | 270 in-lb | Spg Rtn | 24V | On/Off | SW | NEMA 4H | WITH HEATER OPTION | Belimo

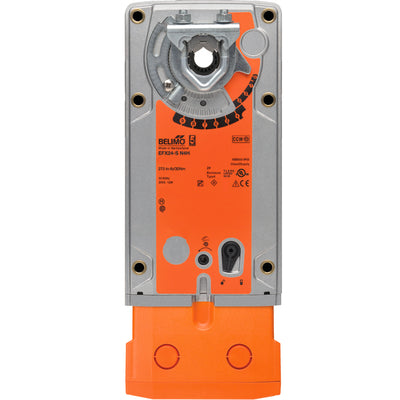

Belimo | EFX24-S N4H

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to EFX24-S N4H

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Belimo EFX24-S N4H Documents

Datasheet Installation Instructions More Info

Overview

Details for EFX24-S N4H

Damper Actuator | 270 in-lb | Spg Rtn | 24V | On/Off | SW | NEMA 4H | WITH HEATER OPTION

For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. A feedback signal is provided for position indication or master-slave applications. Two EF's can be piggybacked for torque loads of up to 540 in-lbs. Minimum 3/4" diameter shaft. OR Maximum of three EF's can be piggybacked for torque loads of up to 810 in-lbs. Minimum 1" diameter shaft. Master-Slave wiring for either configuration.

Specifications

Item Number	EFX24-S N4H
Brand	Belimo
Actuator Type	Damper
Control Input	On/Off
End Switch	Yes
Housing	NEMA 4H
Spring Return	Spring Return
Torque	270 in-lb
Voltage	24V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Midwest Supply Us

ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo $507.60 each

Belimo ZK2-GEN Cable for use with ZTH US to connect to actuators not equipped with diagnostic/programming socket. | Midwest Supply Us

ZK2-GEN | Cable for use with ZTH US to connect to actuators not equipped with diagnostic/programming socket. | Belimo $36.00 each

Belimo ZK1-GEN Cable for use with ZTH US to connect to diagnostic/programming socket. | Midwest Supply Us

ZK1-GEN | Cable for use with ZTH US to connect to diagnostic/programming socket. | Belimo $77.40 each

Belimo ZG-X40 120 to 24 VAC | 40 VA transformer. | Midwest Supply Us

ZG-X40 | 120 to 24 VAC | 40 VA transformer. | Belimo $67.05 each

Belimo ZG-SGF Mounting plate for SGF. | Midwest Supply Us

ZG-SGF | Mounting plate for SGF. | Belimo $18.45 each

Belimo ZG-R02 50% voltage divider kit (resistors with wires). | Midwest Supply Us

ZG-R02 | 50% voltage divider kit (resistors with wires). | Belimo $23.40 each
