EFX120-S N4H | Damper Actuator | 270 in-lb | Spg Rtn | 100 to 240V | On/Off | SW | NEMA 4H | WITH HEATER OPTION | Belimo

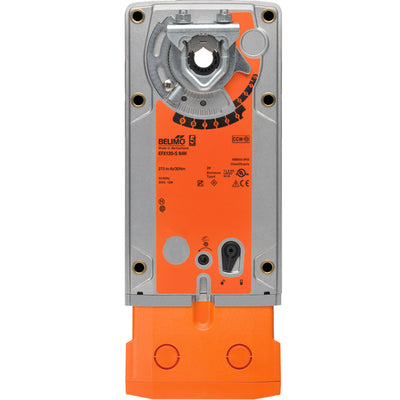

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EFX120-S N4H
Documents and manuals
Belimo EFX120-S N4H Documents
Overview
Details for EFX120-S N4H
Damper Actuator | 270 in-lb | Spg Rtn | 100 to 240V | On/Off | SW | NEMA 4H | WITH HEATER OPTION
For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer's specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. Maximum of two EF's can be piggybacked for torque loads of up to 540 in-lbs. Minimum 3/4" diameter shaft and parallel wiring.Specifications
Item Number | EFX120-S N4H |
Brand | Belimo |
Actuator Type | Damper |
Control Input | On/Off |
End Switch | Yes |
Housing | NEMA 4H |
Spring Return | Spring Return |
Torque | 270 in-lb |
Voltage | 100-240V |
