EFCX120-S N4 | Damper Actuator | 270 in-lb | Spg Rtn | 100 to 240V | On/Off | SW | NEMA 4 | Belimo
Brand: BelimoSKU: EFCX120-S N4
List Price
Availability: This product is currently available to purchase
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

EFCX120-S N4 | Damper Actuator | 270 in-lb | Spg Rtn | 100 to 240V | On/Off | SW | NEMA 4 | Belimo

Belimo | EFCX120-S N4

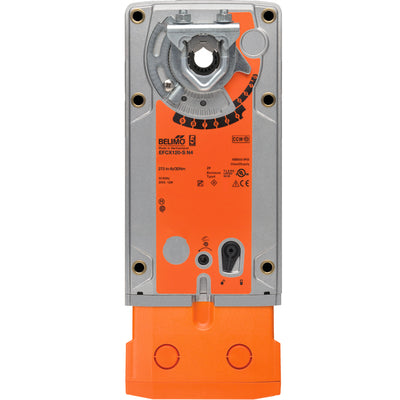

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for EFCX120-S N4

Damper Actuator | 270 in-lb | Spg Rtn | 100 to 240V | On/Off | SW | NEMA 4

Damper Actuator | 270 in-lb | Spg Rtn | 100 to 240V | On/Off | SW | NEMA 4


For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. Maximum of two EF’s can be piggybacked for torque loads of up to 540 in-lbs. Minimum 1” diameter shaft and parallel wiring.


The EF..120-S N4 series actuators provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system provides constant torque to the damper with, and without, power applied to the actuator. The EF..120-S N4 series provides 95° of rotation and is provided with a graduated position indicator showing 0° to 95°. The actuator may be stalled anywhere in its normal rotation without the need of mechanical end switches. The EF..120-S N4 versions are provided with two built-in auxiliary switches. These SPDT switches provide safety interfacing or signaling, for example, for fan start-up. The switching function at the fail-safe position is fixed at 10°, the other switch function is fixed at 85°. The EF..120-S N4 actuator is shipped at 5° (5° from full fail-safe) to provide automatic compression against damper gaskets for tight shut-off.

Installation Note: Use 60°C/75°C copper (CU) conductor and wire size range 12-26 AWG, stranded or solid. If conduit is used, use flexible metal conduit; UL listed and CSA certified strain relief or conduit fitting suitable for outdoor applications, rated NEMA type 4, 4X, 6 or 6X or watertight.


Item Number EFCX120-S N4
Brand Belimo
Actuator Type Damper
Control Input On/Off
End Switch Yes
Housing NEMA 4
Spring Return Spring Return
Torque 270 in-lb
Voltage 100-240V
