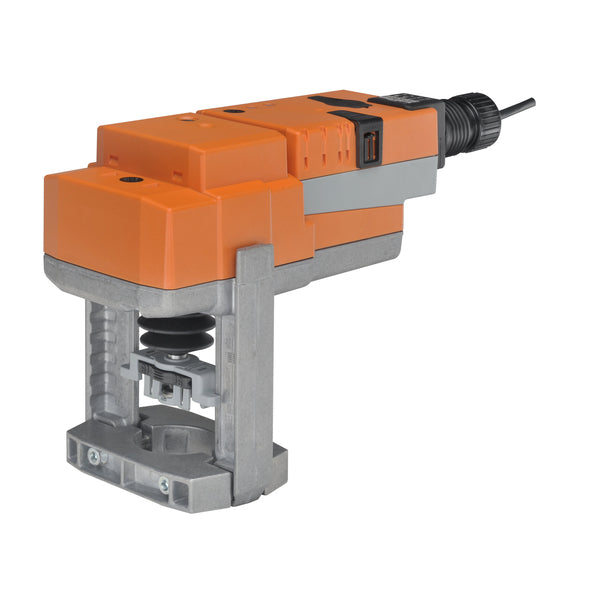

Configurable Valve Actuator, Electronic fail-safe, AC/DC 24 V, DC 2...10 V

PART CANNOT BE CANCELED OR RETURNED UNLESS RENDERED DEFECTIVE BY MANUFACTURER UPON INSPECTION

Application

The BGVL kit is designed to easily attach LV and SV series actuators to Belimo Globe Valves. The tapered bonnet and notched stem design allow easy installation of the BGVL on ½” to 2” two-way or three-way valves in both normally open and normally closed configurations.

Operation

The BGVL linkage with actuator will provide 20 mm of linear travel to accommodate a wide range of valve sizes. Default/Configuration The default set up for a BGVL linkage will be factory installed along with a LV or SV series actuator. Included in the kit will be all the necessary hardware to facilitate mounting to the Belimo Globe Valve.
