B6500S-290-250+GRX24-MFT | CCV | 5
$3,129.30
Brand: BelimoSKU: B6500S-290-250+GRX24-MFT
List Price
$6,954.00
$3,129.30
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

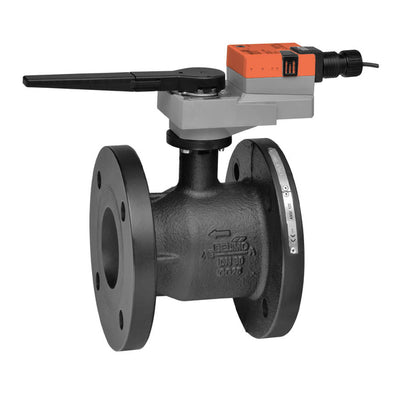

B6500S-290-250+GRX24-MFT | CCV | 5" | 2 Way | 290 Cv | w/Non-Spring | 24V | MFT | Belimo

Belimo | B6500S-290-250+GRX24-MFT
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B6500S-290-250+GRX24-MFT

Documents and manuals

Belimo B6500S-290-250+GRX24-MFT Documents

Overview

Details for B6500S-290-250+GRX24-MFT

CCV | 5" | 2 Way | 290 Cv | w/Non-Spring | 24V | MFT

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
250
Controllable Flow Range
75B0
Cv
290
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
5" [125]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
2.5 W
Power Consumption (Running)
8 W
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
