B61200VB-1905+SY4-24MFT | Ball Valve (VB) | 12
$34,213.05
Brand: BelimoSKU: B61200VB-1905+SY4-24MFT
List Price
$76,029.00
$34,213.05
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

B61200VB-1905+SY4-24MFT | Ball Valve (VB) | 12" | 2-way | ANSI Class 150 | Cv 1905  | Configurable Valve Actuator | Non fail-safe | AC/DC 24 V | 2-10 V | 2 x SPDT | MFT/programmable | Belimo

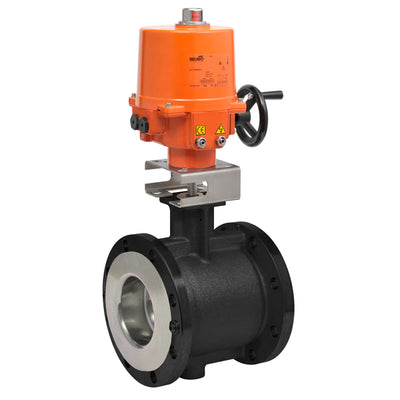

Belimo | B61200VB-1905+SY4-24MFT
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B61200VB-1905+SY4-24MFT

Documents and manuals

Belimo B61200VB-1905+SY4-24MFT Documents

Overview

Details for B61200VB-1905+SY4-24MFT

Ball Valve (VB), 12", 2-way, ANSI Class 150, Cv 1905 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, 2 x SPDT, MFT/programmable

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
150
Controllable Flow Range
75B0
Cv
1905
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
12" [300]
Actuator specifications
Actuator Type
Non fail-safe
Auxiliary Switches
2 x SPDT
Control Type
MFT/Programmable
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
Hand wheel
Running Time (Motor)
20 s
Voltage AC/DC
AC/DC 24 V
