B240+ARQX24-MFT | Characterized Control Valve (CCV) | 1 1/2
$653.85
Brand: BelimoSKU: B240+ARQX24-MFT
List Price
$1,453.00
$653.85
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

B240+ARQX24-MFT | Characterized Control Valve (CCV) | 1 1/2" | 2-way | Cv 37  | Configurable Valve Actuator | Non fail-safe | AC/DC 24 V | 2-10 V | MFT/programmable | Belimo

Belimo | B240+ARQX24-MFT

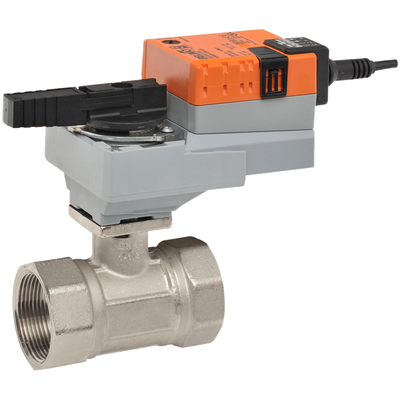

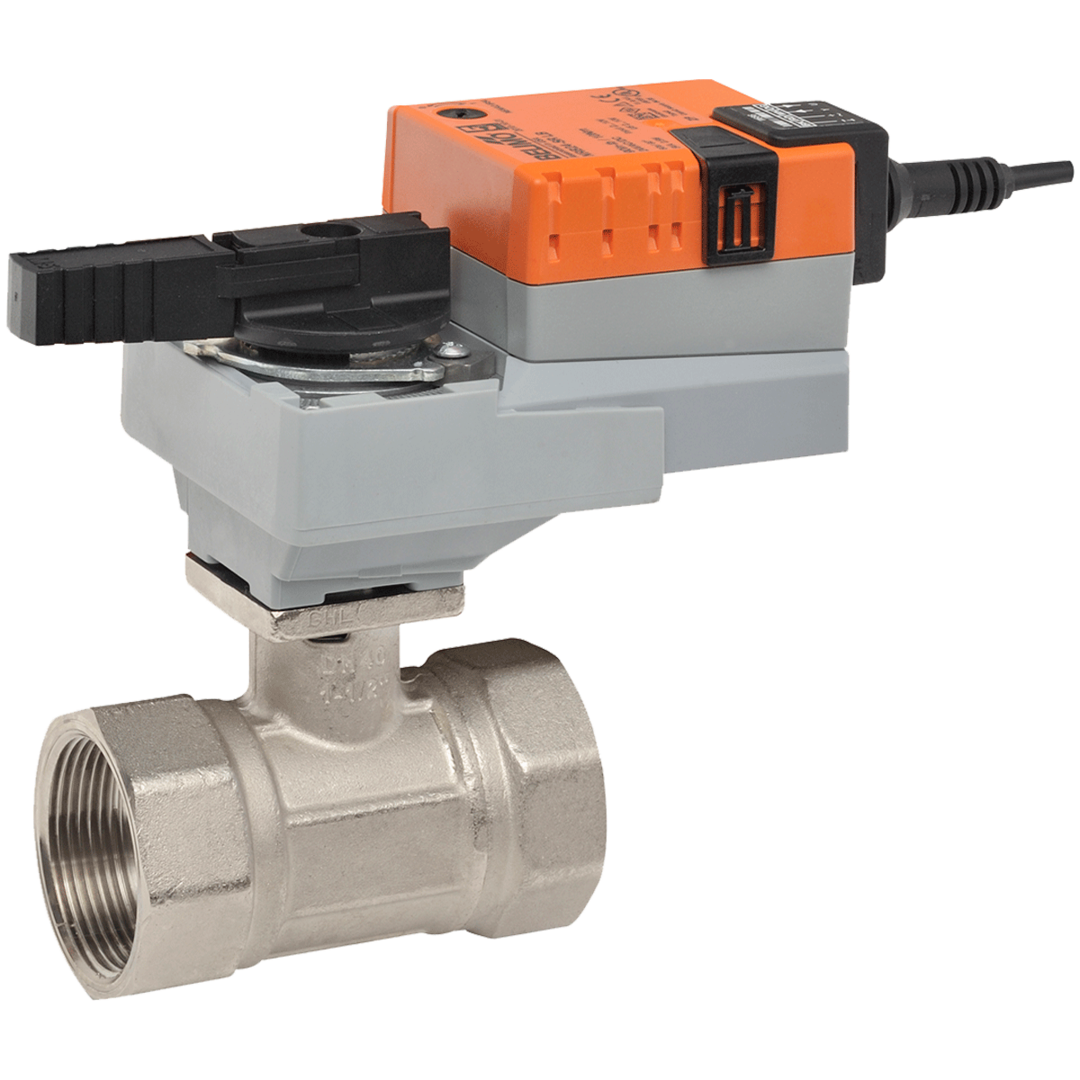

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B240+ARQX24-MFT

Documents and manuals

Belimo B240+ARQX24-MFT Documents

Overview

Details for B240+ARQX24-MFT

Characterized Control Valve (CCV), 1 1/2", 2-way, Cv 37 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
37
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1.5" [40]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
1.5 W
Power Consumption (Running)
15 W
Running Time (Motor)
10 s / 90B0
Voltage AC/DC
AC/DC 24 V
