B239VS+2*AFX24-MFT-X1 | Ball Valve | 1.5" | 2 Way | 84 Cv | w/ Spg Rtn | 24V | MFT | Belimo

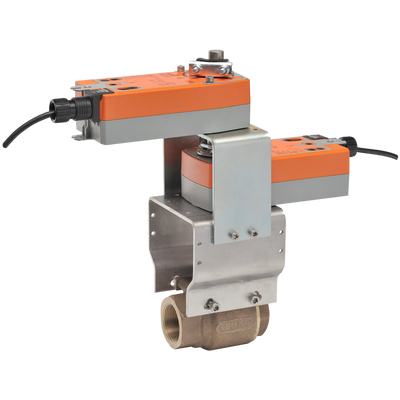

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for B239VS+2*AFX24-MFT-X1

Ball Valve | 1.5" | 2 Way | 84 Cv | w/ Spg Rtn | 24V | MFT

Product features This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV Box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow. This valve is designed with MFT functionally which facilitates the use of various control input. Up to 35 psi steam 1/2" - 2" 600 PSIG WOG, Cold Non-Shock Federal Specification: WW-V-35C, Type II Composition: BZ Style: 3

Specifications

Item Number	B239VS+2*AFX24-MFT-X1
Brand	Belimo
Control Input	Belimo MFT (Modulating)
Control Valves Type	Ball Valve
Cv / GPM	84 Cv
Spring Return	Spring Return
Valve Size	1.5" - 2 Way
Voltage	24V
