B224VS+AFB24-X1 | Ball Valve | 1" | 2 Way | 43 Cv | w/ Spg Rtn | 24V | On/Off | Belimo

Belimo | B224VS+AFB24-X1

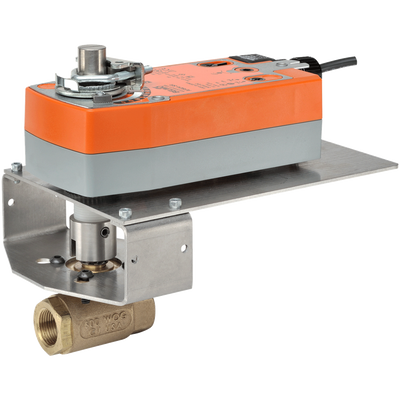

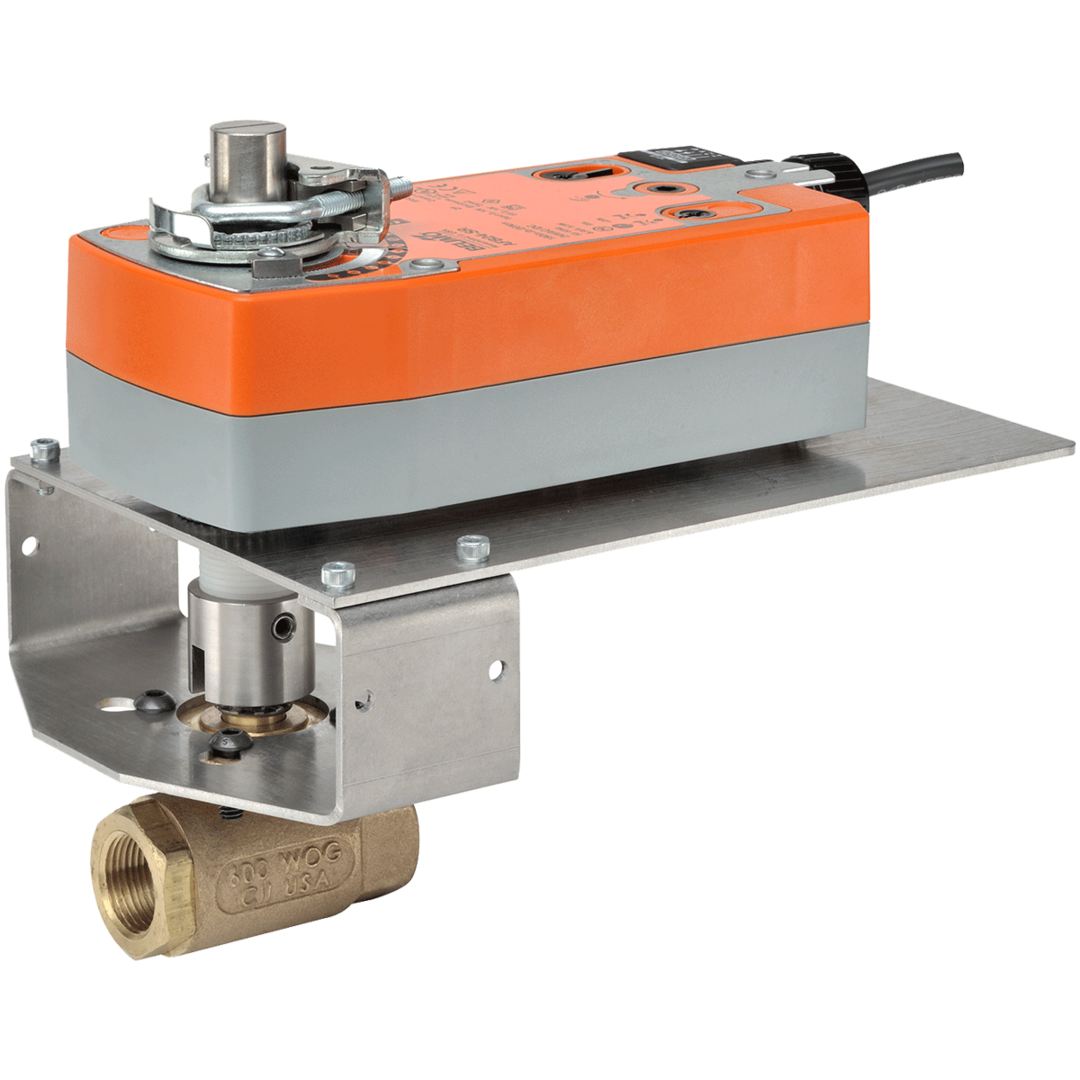

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for B224VS+AFB24-X1

Ball Valve | 1" | 2 Way | 43 Cv | w/ Spg Rtn | 24V | On/Off

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV Box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow. This valve is designed with MFT functionally which facilitates the use of various control input. Up to 35 psi steam 1/2" - 2" 600 PSIG WOG, Cold Non-Shock Federal Specification: WW-V-35C, Type II Composition: BZ Style: 3


Item Number B224VS+AFB24-X1
Brand Belimo
Control Input On/Off
Control Valves Type Ball Valve
Cv / GPM 43 Cv
Spring Return Spring Return
Valve Size 1" - 2 Way
Voltage 24V
