B2050VS-15+GRCX24-3-T N4 | Ball Valve (VS), 1/2
$996.30
Brand: BelimoSKU: B2050VS-15+GRCX24-3-T N4
List Price
$2,214.00
$996.30
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

B2050VS-15+GRCX24-3-T N4 | Ball Valve (VS), 1/2", 2-way | Configurable Valve Actuator, Non fail-safe, AC/DC 24V, On/Off, Floating point, NEMA4X, terminals | Belimo

Belimo | B2050VS-15+GRCX24-3-T N4

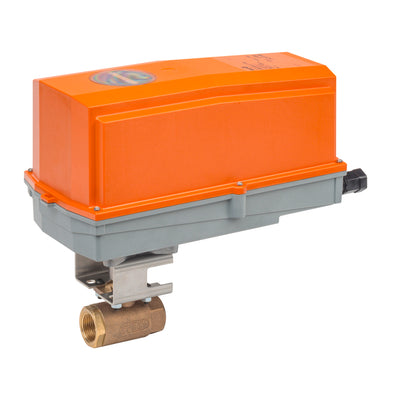

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B2050VS-15+GRCX24-3-T N4

Documents and manuals

Belimo B2050VS-15+GRCX24-3-T N4 Documents

Overview

Details for B2050VS-15+GRCX24-3-T N4

Ball Valve (VS), 1/2", 2-way | Configurable Valve Actuator, Non fail-safe, AC/DC 24V, On/Off, Floating point, NEMA4X, terminals

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
90B0 rotation
Cv
15
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
Floating/3-point
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
Under cover
Power Consumption (Holding)
2.5 W
Power Consumption (Running)
8 W
Running Time (Motor)
35 s / 90B0
Voltage AC/DC
AC/DC 24 V
