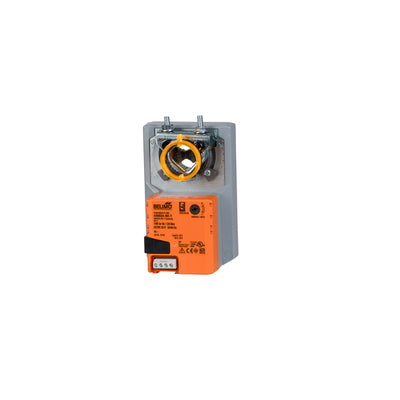

AMB24-SR-T | Damper Actuator | 180 in-lbs [20 Nm] | Non fail-safe | AC/DC 24V | DC2-10V | terminals | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AMB24-SR-T
Documents and manuals
Belimo AMB24-SR-T Documents
Overview
Details for AMB24-SR-T
Damper Actuator | 180 in-lbs [20 Nm] | Non fail-safe | AC/DC 24V | DC2-10V | terminals
For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp, 1/2" self-centered default. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The actuator operates in response to a 2 to 10 VDC, or with the addition of a 500 Ω resistor, a 4 to 20 mA control input from an electronic controller or positioner. A 2 to 10 VDC feedback signal is provided for position indication or master-slave applications.Specifications
- Actuator Type
- Non fail-safe
- Angle of Rotation
- 95
- Control Type
- DC 2...10 V
- Degree of Protection
- IP20 NEMA 1 UL Enclosure Type 1
- Electrical Connection
- terminals
- Manual Override
- External push button
- Power Consumption (Holding)
- 0.4 W
- Power Consumption (Running)
- 2 W
- Running Time (Motor)
- 95 s / 90B0
- Safety Function
- NO
- Torque
- 180 in-lb [20 Nm]
- Voltage AC/DC
- AC/DC 24 V
Parts & Accessories
![Belimo ZS-300 NEMA 4X | 304 stainless steel enclosure. | Midwest Supply Us](http://midwestsupplyus.com/cdn/shop/files/ZS-300_Actuator_Accessory_160x.png?v=1714687754)
ZS-300 | NEMA 4X | 304 stainless steel enclosure. | Belimo
$1,546.20 each
![Belimo ZS-260 Explosion proof housing. | Midwest Supply Us](http://midwestsupplyus.com/cdn/shop/files/ZS-260_Actuator_Accessory_160x.png?v=1719940199)
ZS-260 | Explosion proof housing. | Belimo
$1,875.15 each
