VMD2B-F24D | 15A DPDT Socket/DIN relay | Full | 24VDC | Veris
24 VDC Full-Featured Relay, DPDT

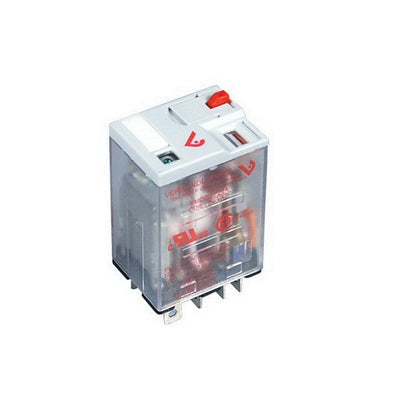

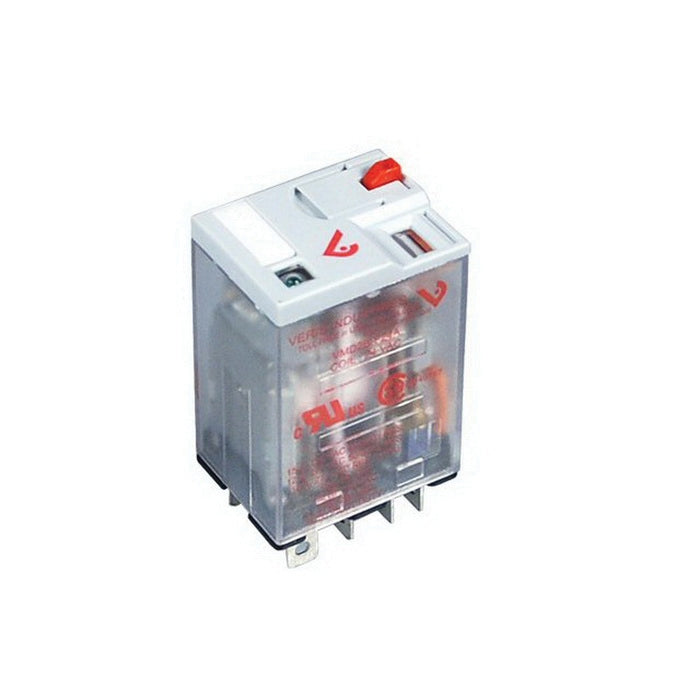

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VMD2B-F24D
Overview
Details for VMD2B-F24D
The VMD2B-F is the full-featured model in a slim housing. The LED, the flag indicator and the test button allow for worry-free operation and easy troubleshooting with minimal downtime. Never wonder where the problem is. DPDT blade-style relays for socket/DIN mounting.
- Color-coded pushbutton - allows manual operation of relay, AC coils red or DC coils blue
- LED status lamp - shows coil on/off status
- 2-way mounting - side or DIN rail mounting system, retrofits existing panel mounting and 35 mm DIN rail
- Override lever - when activated, locks pushbutton and contacts in the powered position
- Flag indicator - shows relay status in manual or powered condition
Specifications
| Item Number | VMD2B-F24D |
| Brand | Veris |
| Application | Building Automation Systems |
| Coil | 24VDC |
| Feature Level | Deluxe Relay |
| Hand-Off-Auto | Yes |
| Model | VMD2B-F24D |
| Mounting | DIN | Wall |
| Operating Temperature | -40 - 131 °F (-40 - 55 °C) |
| Product Certification | UL | CE | CSA |
| Product Type | Relay |
| Range | VMD Series |
| Relay Coil Voltage | 24 VDC |
| Relay Configuration | Socket only |
| Relay Construction | Mechanical |
| Relay Contact Ratings | 10 A @ 120 VAC | 10 A @ 28 VDC | 10 A @ 277 VAC |
| Relay Poles/Throw | DPDT |
| Socketed | Yes |
| Warranty | 5 years |
