V320 | Enc Rly | DPDT | 20A | Veris
Victory 24 VAC/VDC, 120 VAC Enclosed Relay, DPDT

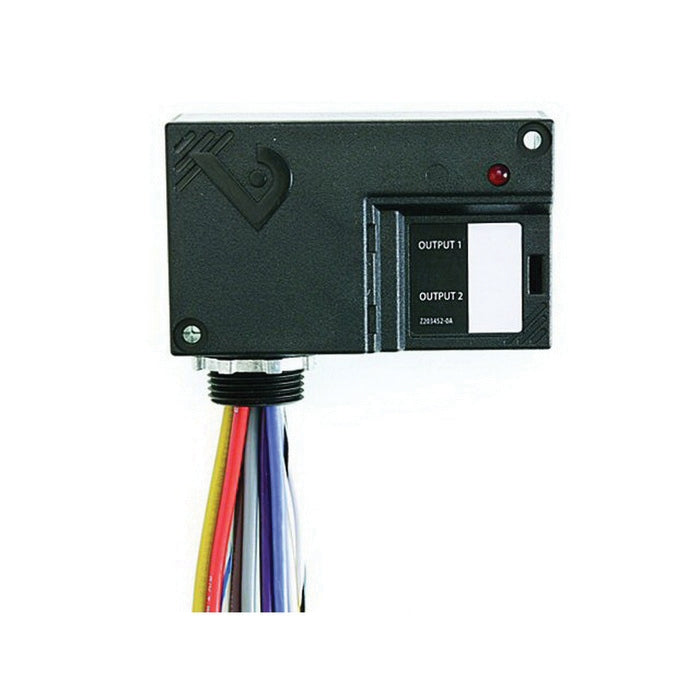

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to V320
Overview
Details for V320
The Victory 320 DPDT power duty enclosed relays combine industrial strength and ease of use. With the nipple mount enclosure, installation could not be easier. The V320 need no dedicated field enclosure, so they are the ideal retrofit devices. One coil input controls the state of two power rated contacts for the simultaneous control of two devices or both poles of a 1-phase circuit, e.g. motor loads. Field-selectable high and low voltage coil inputs provide on-site versatility.
- Sleek enclosure - reduces the need for panel space
- Nipple mount - can be mounted to any electrical enclosure, easing installation
- Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
- UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
Specifications
| Item Number | V320 |
| Brand | Veris |
| Application | Building Automation Systems |
| Coil | 120VAC |
| Coil | 24VAC/DC |
| Electrical Wiring Size | Coil: 18 AWG (0.25 mm²); Contacts: 12 AWG (4 mm²); HOA: 16 AWG (1.5 mm²) |
| Enclosed | Yes |
| Hand-Off-Auto | No |
| Model | V320 |
| Mounting | DIN | Wall |
| Operating Temperature | -40 - 104 °F (-40 - 40 °C) |
| Product Certification | UL |
| Product Type | Relay |
| Range | Victory Series |
| Relay Coil Voltage | 24 VAC/DC | 120 VAC |
| Relay Construction | Mechanical |
| Relay Contact Ratings | 20 A @ 28 VDC | 20 A @ 277 VAC |
| Relay Poles/Throw | DPDT |
| Warranty | 5 years |
