V100DC | Enc Rly | SPDT | 10A | 10-30VDC | Veris

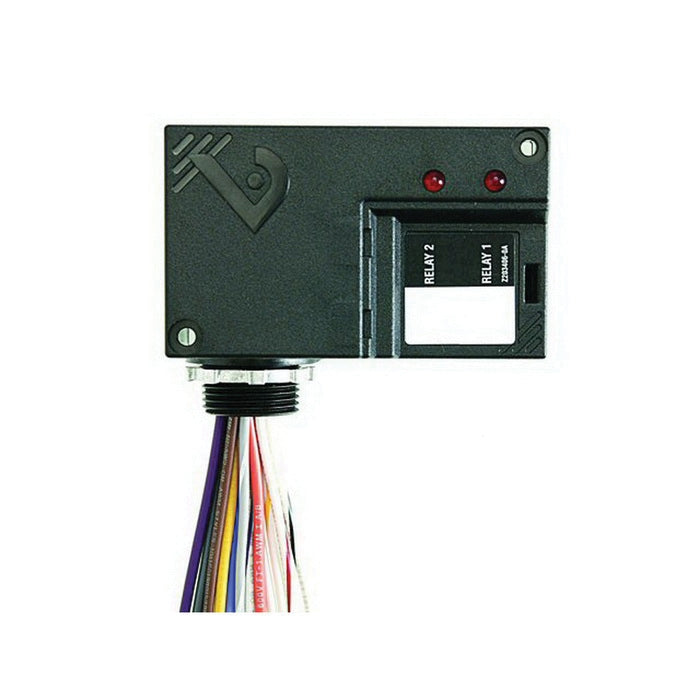

Victory 10 to 30 VDC Enclosed Relay, Dual SPDT
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to V100DC
Overview
Details for V100DC
DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS
Victory 100 series 10 A enclosed relays are pilot-duty relays in an easy-to-use nipple mount enclosure. The V100 series provide quick relay mounting without a dedicated field enclosure, making them ideal for retrofit projects. Field-selectable high and low voltage coil inputs provide on-site versatility.
- Sleek enclosure - reduces the need for panel space
- Nipple mount - Victory series products can be mounted to any electrical enclosure, easing installation
- Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
- UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
- Eliminate conduit - run low voltage instead of line voltage, eliminates conduit in some applications
Specifications
| Item Number | V100DC |
| Brand | Veris |
| Application | Building Automation Systems |
| Coil | 12-30VDC |
| Electrical Wiring Size | Coil: 18 AWG (0.25 mm²); Contacts: 16 AWG (1.5 mm²) |
| Enclosed | Yes |
| Hand-Off-Auto | No |
| Model | V100DC |
| Mounting | DIN | Wall |
| Operating Temperature | -29 - 140 °F (-34 - 60 °C) |
| Product Certification | UL |
| Product Type | Relay |
| Range | Victory Series |
| Relay Coil Voltage | 10 - 30 VDC |
| Relay Construction | Mechanical |
| Relay Contact Ratings | 10 A @ 28 VDC | 10 A @ 277 VAC |
| Relay Poles/Throw | SPDT |
| Warranty | 5 years |
