TW2XAXD | Sensor, Temp, Wall, 10k Type 2 Thermistor | Veris

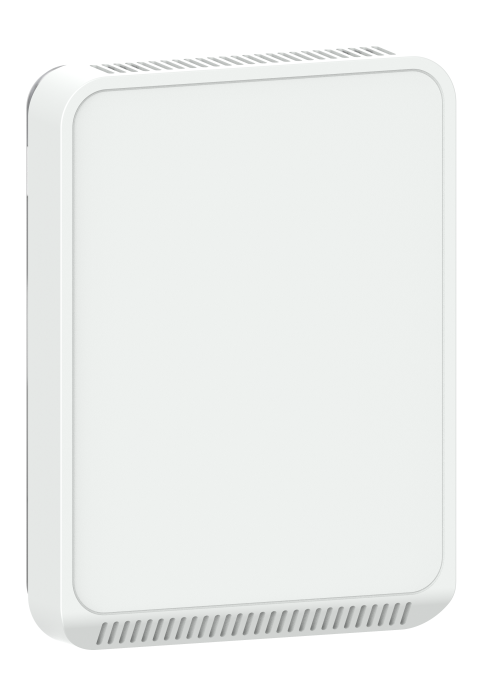

Sensor, Temp, Wall, 10k Type 2 Thermistor

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TW2XAXD

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TW2XAXD Documents

Datasheet More Info

Overview

Details for TW2XAXD

The Veris TW2 Series of temperature sensors for living space is a versatile sensor platform for use with various brands of BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, 0 to 10Vdc, and various thermistor outputs. TW2 Series sensors feature no-logo on the faceplate and are available with three user interface options: touchscreen, LCD with three buttons and blank.

Specifications

Item Number	TW2XAXD
Brand	Veris
Color	Matte White
Display Type	None
Electrical Wiring Size	Screw terminals; 18-24 AWG
Enclosure Material	High impact ABS plastic
Input Specifications	Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz
IP Protection	IP20
Measurement Type	Temperature
Operating Humidity	0 to 95% RH non-condensing
Operating Temperature	0 to 50 °C (32 to 122 °F)
Output Specifications	Selectable 4 to 20 mA; 0 to 5 V; 0 to 10 V
Outputs	Analog
Override	No
Setpoint	No
Standards EMC	EN61000 Series - industrial immunity
Temperature Measurement Accuracy	±1.0 °C
Temperature Measurement Range	0 to 50 °C (32 to 122 °F)
Temperature Measurement Resolution	0.1 °C (0.1 °F)
Temperature Sensor Type	Thermistor; 10K Type 2
