TFDBR00 | Temp | Duct w/Mtg Box | 8" | 100R Pt | RTD | Veris

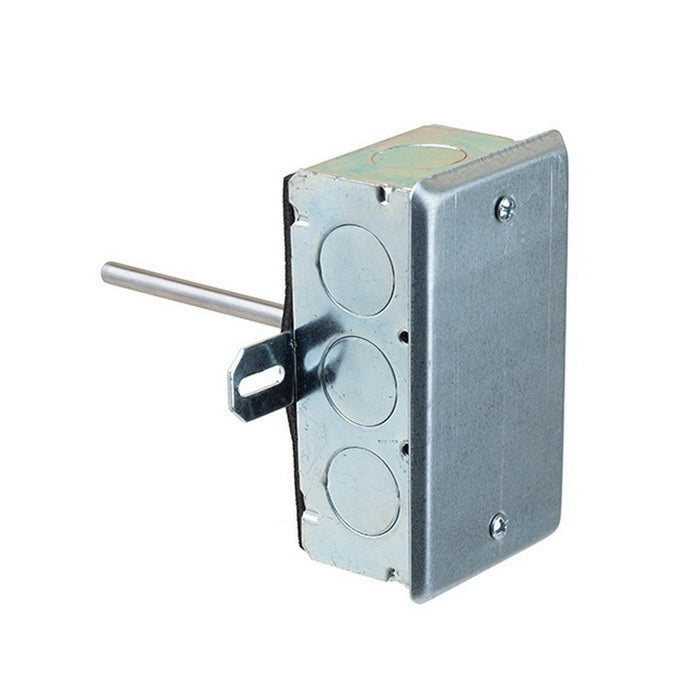

Stainless Steel Probe 8 in 100 Ohm Platinum RTD PTC Temperature Sensor, Duct with Mounting Box Enclosure

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TFDBR00

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TFDBR00 Documents

Datasheet More Info

Overview

Details for TFDBR00

Duct-mount temperature sensors from Veris are pre-calibrated and housed in sturdy stainless steel probes. The devices are easy to install, durable and highly accurate.

Cost-effective, high accuracy RTDs available with or without a junction box
Durable - corrosion resistant stainless steel probe design
No calibration required
Duct with mounting box enclosure
Resistive output
Not suitable for wet locations, for indoor use only

Specifications

Item Number	TFDBR00
Brand	Veris
Application Zone	Plant Room
Application	Duct
Dimension Depth	1.8" (44 mm)
Dimension Height	4.2" (102 mm)
Dimension Probe Diameter	0.25" (6 mm)
Dimension Probe Length	8" (203 mm)
Dimension Width	2.3" (58 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	Galvanized Steel
Measurement Type	Temperature
Model	TFDBR00
Mounting	Duct with Mounting Box
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Product Certification	CE
Product Type	Sensor
Range	TF
Sensor Configuration	Duct
Sensor Length	8 inch
Sensor	Temperature
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.6 °F (±0.3 °C)
Temperature Measurement Range	32 - 122 °F (0 - 50 °C)
Temperature Sensor Type	100 Ohm Platinum RTD
Warranty	5 years
