TED00 | Temp Economy Wall | 10k T2 | Veris

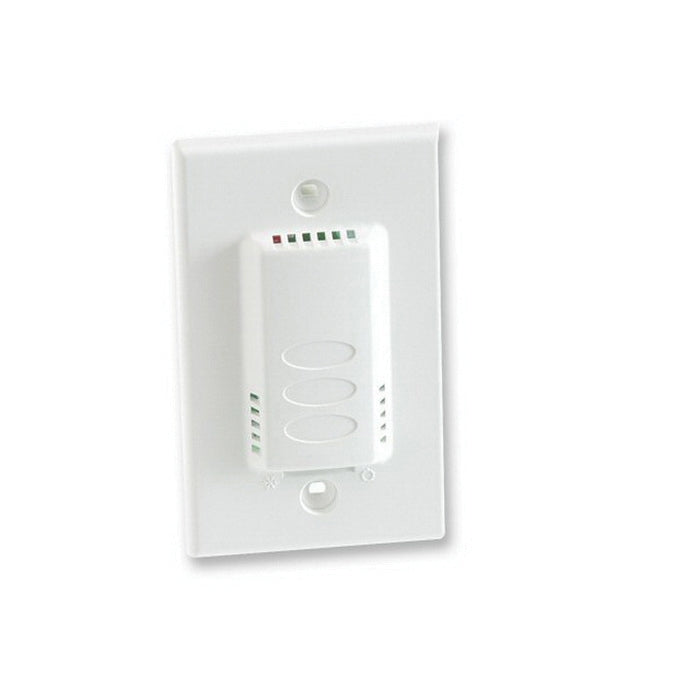

Cloud White ABS Plastic 10 kOhm T2 Thermistor NTC Temperature Sensor

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TED00

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TED00 Documents

Datasheet More Info

Overview

Details for TED00

These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment.

Wall mount - low-profile housing
Quick installation - reduced downtime for deployment

Specifications

Item Number	TED00
Brand	Veris
Application Zone	Living Space
Application	Wall
Dimension Depth	0.5" (13 mm)
Dimension Height	3.2" (82 mm)
Dimension Width	2.8" (72 mm)
Display Type	None
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	ABS Plastic
Measurement Type	Temperature
Model	TED00
Mounting	Wall
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Override	No
Product Certification	CE
Product Type	Sensor
Range	TE
Sensor Configuration	Room Only
Sensor	Temperature
Setpoint	No
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±1.8 °F (±1.0 °C)
Temperature Measurement Range	-58 - 302 °F (-50 - 150 °C)
Temperature Sensor Type	10k Ohm Type 2 Thermistor
Warranty	5 years
