HW2XA2N | RH,Wall,2%,Temp,1.8k | Veris
Sensor, Humidity, Wall, 2% Accuracy, Accuracy, Temp, 1.8k Thermistor

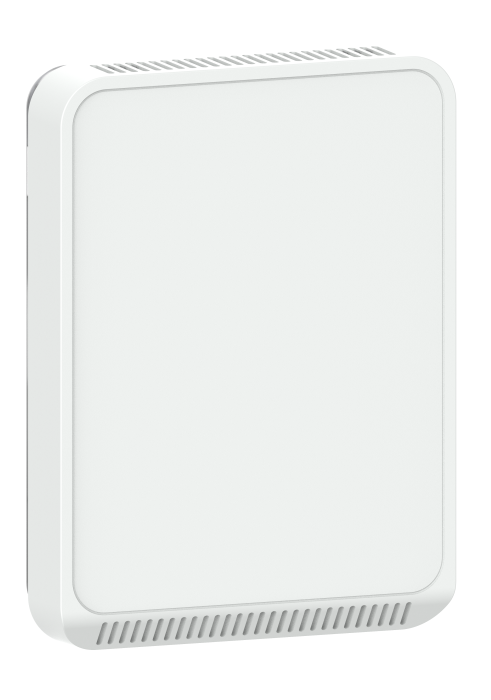

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HW2XA2N
Documents and manuals
Veris HW2XA2N Documents
Overview
Details for HW2XA2N
The Veris HW2 Series of humidity sensors for living space is a flexible multi-sensor platform for use with various brands of BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, 0 to 10Vdc, and various thermistor outputs. HW2 Series sensors feature no-logo on the faceplate and are available with three user interface options: touchscreen, LCD with three buttons and blank. Humidity and temperature sensors are included with all HW2 Series sensors The Veris HW2 Series of humidity sensors for living space is a flexible multi-sensor platform for use with various brands of BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, 0 to 10Vdc, and various thermistor outputs. HW2 Series sensors feature no-logo on the faceplate and are available with three user interface options: touchscreen, LCD with three buttons and blank. Humidity and temperature sensors are included with all HW2 Series sensors
Specifications
| Item Number | HW2XA2N |
| Brand | Veris |
| Color | Matte White |
| Electrical Wiring Size | Screw terminals; 18-24 AWG |
| Enclosure Material | High impact ABS plastic |
| Humidity Measurement Accuracy | ±2% from 10 to 80% RH @ 25°C (77 °F) |
| Humidity Measurement Range | 0 to 100% RH |
| Humidity Measurement Resolution | 0.1% RH |
| Humidity Sensor Type | Thin-film capacitive; replaceable |
| Input Specifications | Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz |
| IP Protection | IP20 |
| Measurement Type | RH / Temperature |
| Operating Humidity | 0 to 95% RH non-condensing |
| Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| Output Specifications | Selectable 4 to 20 mA; 0 to 5 V; 0 to 10 V |
| Outputs | Analog |
| Override | No |
| Setpoint | No |
| Standards EMC | EN61000 Series - industrial immunity |
| Temperature Measurement Accuracy | ±0.2 °C (±0.4 °F) typical |
| Temperature Measurement Range | 0 to 50 °C (32 to 122 °F) |
| Temperature Measurement Resolution | 0.1 °C (0.1 °F) |
| Temperature Sensor Type | Thermistor; 1.8K |
| Warranty | 5 Years |
