H940 | Current Switch/Relay Combo | Split Core | fixed | SPDT | Veris
Hawkeye 1.5 to 200 A Fixed Trip Point Current Switch with 24 VAC/VDC SPDT Relay, Split-Core

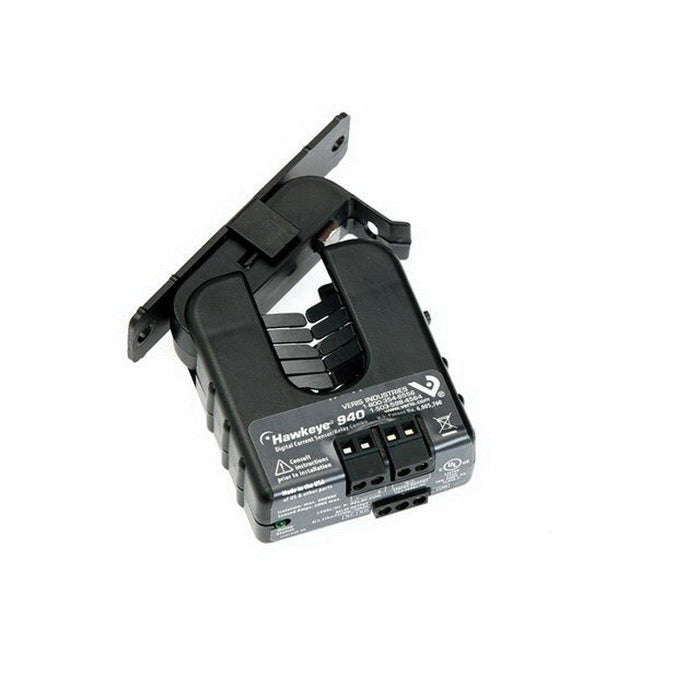

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H940
Overview
Details for H940
The Hawkeye relay combination series combines an on/off status sensor and command relay in one package, saving the labor, wire runs and space required to mount a separate relay. The switch and relay (not electrically connected) are in the same housing, saving space and cost. It is ideal for monitoring and controlling motors where belt loss is not a concern.
- On/off status and command relay in a single labor and space saving device
- Detect belt loss - cost-effectively monitor start/stop, unit vents, fan coils, exhaust fans, and other loads where belt loss is not a concern
- Easy setup - no calibration required easy setup and operation
- SPDT command relay
- No tubing necessary - easier to install than differential pressure switches
- Induced from monitored conductor sensor power
Specifications
| Item Number | H940 |
| Brand | Veris |
| Application | Building Automation Systems |
| Current Core | Split Core |
| Current Measurement Range | 1.5 - 200 A |
| Current Sensor type | Current Switch; AC |
| Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
| Measurement Type | AC Current |
| Model | H940 |
| Monitored Frequency Range | 50 - 60 Hz |
| Monitored Wire Size | 0.8" (21 mm) |
| Mounting | Split Core |
| Operating Humidity | 10 - 90% RH; non-condensing |
| Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
| Output Specifications | N.O. 1 A @ 250 VAC |
| Outputs | Switch output | Relay |
| Product Certification | UL | CE |
| Product Type | Sensor |
| Range | HX40 Series |
| Relay Coil Voltage | 24 VAC/DC |
| Relay Construction | Mechanical |
| Relay Contact Ratings | Resistive: 8 A @ 250 VAC | Resistive: 8 A @ 30 VDC | Inductive: 3.5 A @ 250 VAC | Inductive: 3.5 A @ 30 VDC |
| Relay Poles/Throw | SPDT |
| Sensor | Current Switch (Hawkeye) |
| Setpoint | Fixed |
| Warranty | 5 years |
