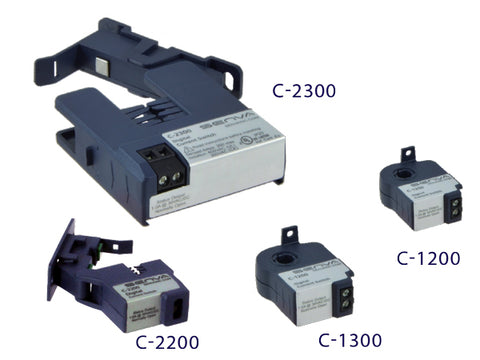

C-2343 | Analog 0-5VDC, 30/60/120A, split core | Senva Sensors$35.58
Brand: Senva Sensors
SKU: C-2343H922 | Current Transducer | Split-Core | 0-120A | 0-5VDC | Veris

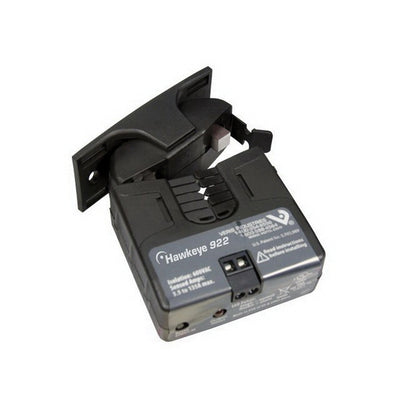

Hawkeye 0 to 30/60/120 A Input 0 to 5 VDC Output Analog Current Transducer, Split-Core, 1.1 x 0.8 in
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H922
Overview
Details for H922
The Hawkeye 922 provide accurate load trending information with a proportional 0 to 5 VDC output signal. Slide-switches provide easy field selection of monitored amperage range without jumpers.
- Self-powered analog current sensor simplifies installation
- No external power required for sensor
- Self-gripping, split-core design for fast retrofit installation, no need to remove conductor
- Factory calibrated ranges for increased flexibility and resolution
- No jumpers on unit, reduces installation error
- Induced from monitored conductor sensor power
Specifications
| Item Number | H922 |
| Brand | Veris |
| Application | Building Automation Systems |
| Current Core | Split Core |
| Current Measurement Accuracy | ±2% of F.S. above 10% of F.S. |
| Current Measurement Range | 0 - 30 A | 0 - 60 A | 0 - 120 A |
| Current Sensor type | Current Transducer; AC |
| Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
| Measurement Type | AC Current |
| Model | H922 |
| Monitored Frequency Range | 50 - 60 Hz |
| Monitored Wire Size | 0.8" (21 mm) |
| Mounting | Split Core |
| Operating Humidity | 10 - 90% RH; non-condensing |
| Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
| Output Specifications | 0 - 5 VDC |
| Outputs | Analog output |
| Product Certification | UL | CE |
| Product Type | Sensor |
| Range | HX22 Series |
| Relay Coil Voltage | None |
| Relay Contact Ratings | None |
| Relay Poles/Throw | None |
| Sensor | Current Sensor (Hawkeye) |
| Warranty | 5 years |
