H809 | Mini Solid Core | Adj | Range:0.75-50AAC | N.O. | Output:0.2A@120VAC | Veris
Hawkeye 0.75 to 50 A Adjustable Trip Point High Voltage Output Current Switch, Solid-Core

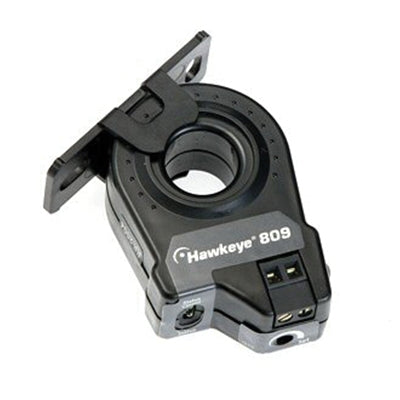

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H809
Overview
Details for H809
Hawkeye x09 series are high performance current switches, ideal for line voltage loads. The devices are powered by the current being monitored. They are ideal for monitoring performance on unit vents, exhaust fans, recirculation pumps and other fixed loads.
- Low setpoint - the H809 has a low (0.75 A) minimum setpoint no need for multiple wraps of the conductor through the sensor, even on loads as small as 1/5 hp
- Small in size - H809 are small in size to fit easily inside small starter enclosures
- Versatility - removable mounting bracket optimizes field versatility
- Adjustable trip point - precise current trip point setting
- Status LEDs - for easy setup and local indication
- Induced from monitored conductor sensor power
- Lead-free
Specifications
| Item Number | H809 |
| Brand | Veris |
| Application | Building Automation Systems |
| Current Core | Solid Core |
| Current Measurement Range | 0.75 - 50 A |
| Current Sensor type | Current Switch; AC |
| Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
| Measurement Type | AC Current |
| Model | H809 |
| Monitored Frequency Range | 50 - 60 Hz |
| Monitored Wire Size | 0.7" (18 mm) |
| Mounting | Solid Core |
| Operating Humidity | 10 - 90% RH; non-condensing |
| Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
| Output Specifications | N.O. 0.2A @ 120 VAC/DC |
| Outputs | Switch output |
| Product Certification | UL | CE |
| Product Type | Sensor |
| Range | HX09 Series |
| Relay Coil Voltage | None |
| Relay Contact Ratings | None |
| Relay Poles/Throw | None |
| Sensor | Current Switch (Hawkeye) |
| Setpoint | Adjustable |
| Warranty | 5 years |
