H758 | Current Switch/Relay Combo | Solid Core | SPST | Coil:9-12VDC | Veris

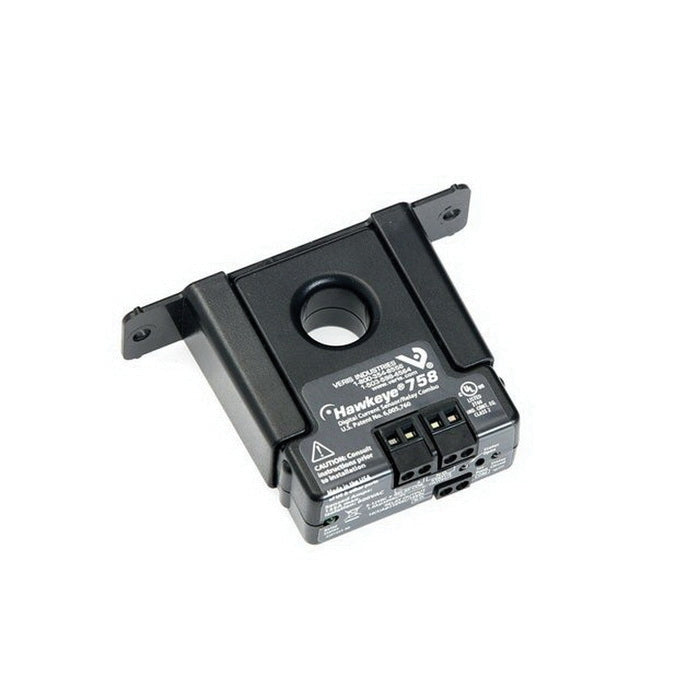

Hawkeye 1 to 135 A Adjustable Trip Point Current Switch with 12 VDC SPST Relay, Solid-Core
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H758
Overview
Details for H758
The Hawkeye relay combination series is the ideal solution for the automation installer. These units combine a current switch and relay into a single package, reducing the space required for total control of fans and pumps. The current switch and relay operate independently of one another. These devices allow start/stop control and status monitoring with one device instead of two.
- Combined relay and status - combines command relay and fan/pump status sensor in a single, easy-to-install unit
- Fan and pump status - detect belt loss and motor failure ideal for fan and pump status
- Polarity insensitive status outputs - fast and easy installation
- Two outputs - H948 feature a SPDT command relay control two outputs with a single relay
- Added flexibility - bracket on H958 can be installed in three different configurations
- Easy setup - relay and status LEDs
- Induced from monitored conductor sensor power
Specifications
| Item Number | H758 |
| Brand | Veris |
| Application | Building Automation Systems |
| Current Core | Solid Core |
| Current Measurement Range | 1 - 135 A |
| Current Sensor type | Current Switch; AC |
| Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
| Measurement Type | AC Current |
| Model | H758 |
| Monitored Frequency Range | 50 - 60 Hz |
| Monitored Wire Size | 0.7" (18 mm) |
| Mounting | Solid Core |
| Operating Humidity | 10 - 90% RH; non-condensing |
| Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
| Output Specifications | N.O. 1 A @ 30 VAC/DC |
| Outputs | Switch output | Relay |
| Product Certification | UL |
| Product Type | Sensor |
| Range | HX58 Series |
| Relay Coil Voltage | 12 VDC |
| Relay Construction | Mechanical |
| Relay Contact Ratings | Resistive: 10 A @ 250 VAC | Resistive: 10 A @ 30 VDC | Inductive: 5 A @ 250 VAC | Inductive: 5 A @ 30 VDC |
| Relay Poles/Throw | SPST |
| Sensor | Current Switch (Hawkeye) |
| Setpoint | Adjustable |
| Warranty | 5 years |
