H723LC | Current Sensor | Solid | 0-10/20/40A | 10V | Veris

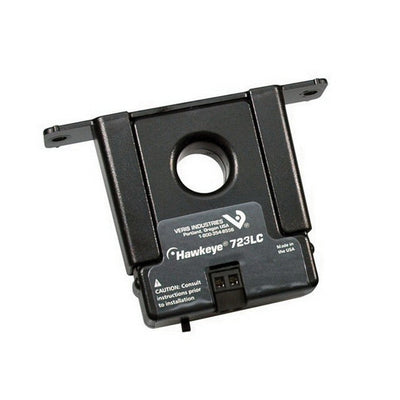

Hawkeye 0 to 10/20/40 A Input 0 to 10 VDC Output Analog Current Transducer, Solid-Core, 0.7 in

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H723LC

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris H723LC Documents

Datasheet More Info

Overview

Details for H723LC

The Hawkeye H723LC series provide accurate load trending information with a proportional 0 to 10 VDC output signal. slide-switch selection for easy field adjustment - no need for jumpers.

Self-powered analog current transducer 0 to 10 VDC output
Self-gripping, split-core design for fast retrofit installation, no need to remove conductor
No jumpers on unit, reduces installation error
No external power required for sensor
Factory calibrated ranges for high resolution and installation ease
Induced from monitored conductor sensor power

Specifications

Item Number	H723LC
Brand	Veris
Application	Building Automation Systems
Current Core	Solid Core
Current Measurement Accuracy	±2% of F.S. or 0.4 A; whichever is greater; above 10% of F.S.
Current Measurement Range	0 - 10 A \| 0 - 20 A \| 0 - 40 A
Current Sensor type	Current Transducer; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H723LC
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.7" (18 mm)
Mounting	Solid Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	0 - 10 VDC
Outputs	Analog output
Product Certification	CE
Product Type	Sensor
Range	HX23 Series
Relay Coil Voltage	None
Relay Contact Ratings	None
Relay Poles/Throw	None
Sensor	Current Sensor (Hawkeye)
Warranty	5 years
