H709HV | Current Switch | Solid | Adj | NO | 250V | Veris
Hawkeye 1 to 135 A Adjustable Trip Point High Voltage Output Current Switch, Solid-Core

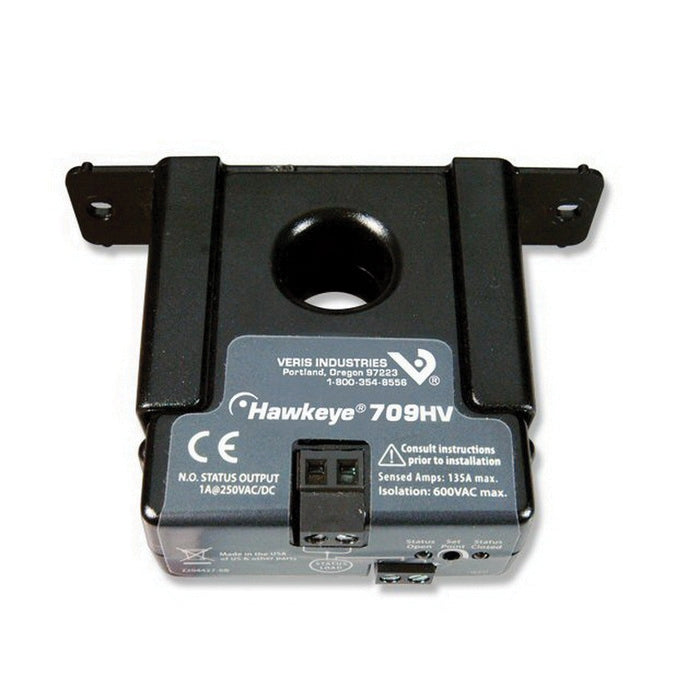

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H709HV
Overview
Details for H709HV
Hawkeye x09 series are high performance current switches, ideal for line voltage loads. The devices are powered by the current being monitored. They are ideal for monitoring performance on unit vents, exhaust fans, recirculation pumps and other fixed loads.
- Versatility - removable mounting bracket optimizes field versatility
- Adjustable trip point - precise current trip point setting
- Induced from monitored conductor sensor power
Specifications
| Item Number | H709HV |
| Brand | Veris |
| Application | Building Automation Systems |
| Current Core | Solid Core |
| Current Measurement Range | 1 - 135 A |
| Current Sensor type | Current Switch; AC |
| Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
| Measurement Type | AC Current |
| Model | H709HV |
| Monitored Frequency Range | 50 - 60 Hz |
| Monitored Wire Size | 0.7" (18 mm) |
| Mounting | Solid Core |
| Operating Humidity | 10 - 90% RH; non-condensing |
| Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
| Output Specifications | N.O. 1 A @ 250 VAC |
| Outputs | Switch output |
| Product Certification | CE |
| Product Type | Sensor |
| Range | HX09 Series |
| Relay Coil Voltage | None |
| Relay Contact Ratings | None |
| Relay Poles/Throw | None |
| Sensor | Current Switch (Hawkeye) |
| Setpoint | Adjustable |
| Warranty | 5 years |
