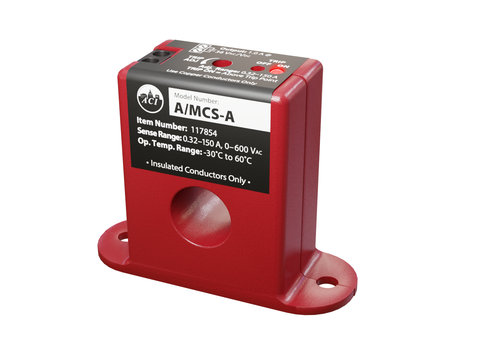

![ACI A/MCS-A Current Switch (Solid Core) | N/O 0-150A | Adjustable Trip Point: 0.32 - 150A | Midwest Supply Us](http://midwestsupplyus.com/cdn/shop/files/aci-a-mcs-a_656a320c-719b-4280-a261-ae4690ca66db_large.png?v=1719925181)
A/MCS-A | Current Switch (Solid Core) | N/O 0-150A | Adjustable Trip Point: 0.32 - 150A | ACI$31.05
Brand: ACI
SKU: A/MCS-AH708 | SolidCore | Adj | Calibration LEDs | Range:1-135AAC | Output:N.O | 1.0 | Veris
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H708
Documents and manuals
Veris H708 Documents
Overview

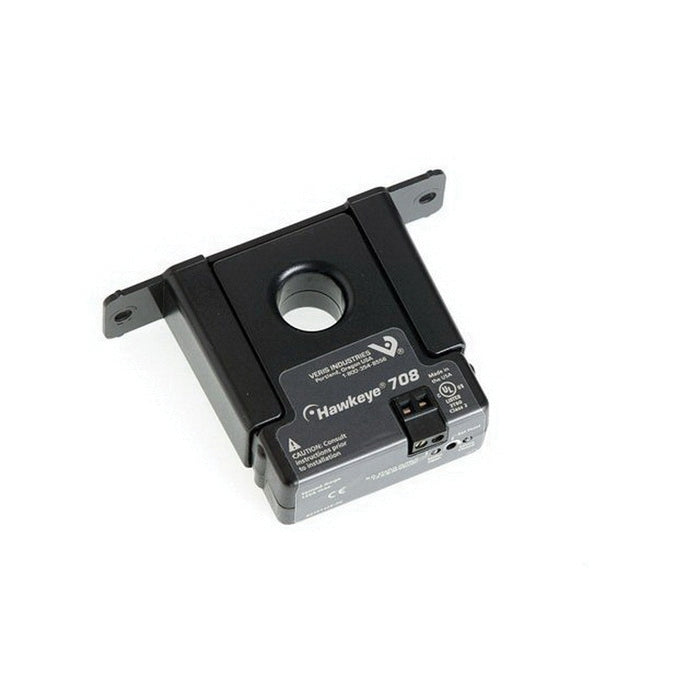

Details for H708
SolidCore | Adj | Calibration LEDs | Range:1-135AAC | Output:N.O | 1.0
Description
Hx08 Series and H701 adjustable current switches offer high performance, with a wide array of amperage range options. These products can accurately detect belt loss, coupling shear, or other mechanical failure on unit vents, exhaust fans, recirculation pumps, and other fixed loads down to as little as 1/5 HP.
APPLICATIONS
- Detecting belt loss, coupling shear, and mechanical failure
- Verifying lighting circuit and other electrical service run times
- Monitoring status of industrial process equipment
- Monitoring status of critical motors (compressor, fuel, etc.)
- VFD output On/Off status
Specifications
Item Number | H708 |
Brand | Veris |
Application | Building Automation Systems |
Current Core | Solid Core |
Current Measurement Range | 1 - 135 A |
Current Sensor type | Current Switch; AC |
Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
Measurement Type | AC Current |
Model | H708 |
Monitored Frequency Range | 50 - 60 Hz |
Monitored Wire Size | 0.7" (18 mm) |
Mounting | Solid Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
Output Specifications | N.O. 1 A @ 30 VAC/DC |
Outputs | Switch output |
Product Certification | UL |
Product Type | Sensor |
Range | HX08 Series |
Relay Coil Voltage | None |
Relay Contact Ratings | None |
Relay Poles/Throw | None |
Sensor | Current Switch (Hawkeye) |
Setpoint | Adjustable |
Warranty | 5 years |
