H608 | Mini Split-Core | Adj. | Range: 0.50-175AAC Output: N.O. | 1.0A | Veris

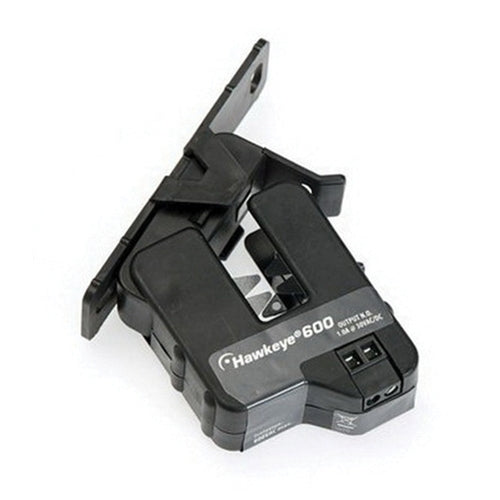

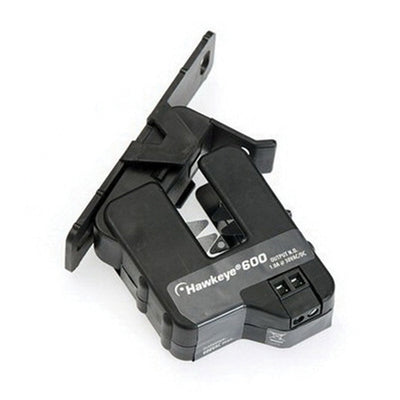

Hawkeye 0.5 to 175 A Adjustable Trip Point Standard Output Current Switch, Split-Core

Veris | H608
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H608

Documents and manuals

Veris H608 Documents

Overview

Details for H608

Hawkeye H608 adjustable current switches offer high performance, with a wide array of amperage range options. These products can accurately detect belt loss, coupling shear or other mechanical failure on unit vents, exhaust fans, recirculation pumps and other fixed loads down to as little as 1/5 hp.

  • Retrofit or new construction - high performance devices in split-core housings
  • Adjustable trip point - precise current trip point setting
  • Low setpoint - minimum trip point as low as 0.5 A, no need for multiple wraps of the conductor through the sensor, even on loads as small as 1/5 hp
  • Small size - fits easily inside small enclosures
  • Self-gripping iris on split-core housings for easy installation
  • Status LEDs - for easy setup and local indication
  • Induced from monitored conductor sensor power

Specifications

Item Number H608
Brand Veris
Application Building Automation Systems
Current Core Split Core
Current Measurement Range 0.5 - 175 A
Current Sensor type Current Switch; AC
Electrical Wiring Size 24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type AC Current
Model H608
Monitored Frequency Range 50 - 60 Hz
Monitored Wire Size 0.5" (12 mm)
Mounting Split Core
Operating Humidity 10 - 90% RH; non-condensing
Operating Temperature 5 - 140 °F (-15 - 60 °C)
Output Specifications N.O. 1 A @ 30 VAC/DC
Outputs Switch output
Product Certification UL | CE
Product Type Sensor
Range HX08 Series
Relay Coil Voltage None
Relay Contact Ratings None
Relay Poles/Throw None
Sensor Current Switch (Hawkeye)
Setpoint Adjustable
Warranty 5 years
