H606 | Mini Split Core | Adj. | Range: 1.25-50AAC | Output: N.C. | 0.1A | Veris
Hawkeye 1.25 to 50 A Adjustable Trip Point Current Switch, Split-Core

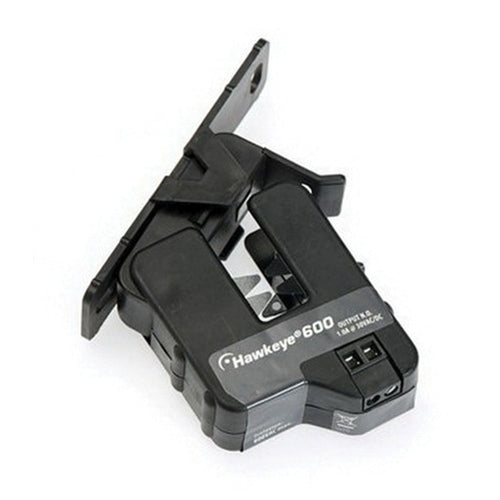

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H606
Overview
Details for H606
Hawkeye x06 series split-core current switches provide accurate, reliable and maintenance-free fan and pump status indication where an NC output is needed.
- Adjustable trip point - versatility with four available amperage ranges
- No tubing necessary - easier to install than differential pressure switches
- Output status LEDs for fast set up
- Easy placement - adjustable mounting bracket on the solid-core housing
- Self-gripping iris on split-core housings for easy installation
Specifications
| Item Number | H606 |
| Brand | Veris |
| Application | Building Automation Systems |
| Current Core | Split Core |
| Current Measurement Range | 1.25 - 50 A |
| Current Sensor type | Current Switch; AC |
| Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
| Measurement Type | AC Current |
| Model | H606 |
| Monitored Frequency Range | 50 - 60 Hz |
| Monitored Wire Size | 0.5" (12 mm) |
| Mounting | Split Core |
| Operating Humidity | 10 - 90% RH; non-condensing |
| Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
| Output Specifications | N.C. 0.1A @ 30 VDC |
| Outputs | Switch output |
| Product Certification | UL | CE |
| Product Type | Sensor |
| Range | HX06 Series |
| Relay Coil Voltage | None |
| Relay Contact Ratings | None |
| Relay Poles/Throw | None |
| Sensor | Current Switch (Hawkeye) |
| Setpoint | Adjustable |
| Warranty | 5 years |
