H600 | Mini Split-Core | Fixed | Range .15-200AAC | N.O. | 1A@30VAC/DC | Veris

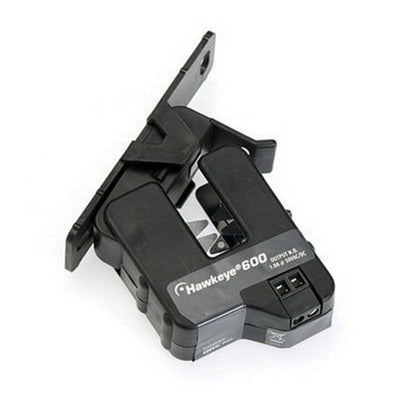

Hawkeye 0.15 to 200 A Fixed Trip Point Current Switch, Split-Core

Veris | H600
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H600

Documents and manuals

Veris H600 Documents

Overview

Details for H600

Hawkeye 600 on/off current switches provide a cost-effective solution for monitoring status on unit vents, exhaust fans, recirculation pumps, and other fixed loads where belt loss is not a concern. Veris has applied new technology to the H600 model to achieve impressive improvement in turn-on levels. The Hawkeye H600 have the lowest turn-on current in the industry at a mere 0.15 A.

  • More reliable for status than relays across auxiliary contacts
  • Ideal for direct-drive units, unit vents, fan coil units, exhaust fans, and other fixed loads
  • Low setpoint - minimum trip point as low as 0.15 A, avoids the need for multiple wraps of the conductor through the sensor even on loads as small as 1/5 hp
  • Removable mounting bracket provides installation flexibility
  • Quick installation - split-core for fast retrofit installation
  • Induced from monitored current sensor power

Specifications

Item Number H600
Brand Veris
Application Building Automation Systems
Current Core Split Core
Current Measurement Range 0.15 - 200 A
Current Sensor type Current Switch; AC
Electrical Wiring Size 24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type AC Current
Model H600
Monitored Frequency Range 50 - 60 Hz
Monitored Wire Size 0.5" (12 mm)
Mounting Split Core
Operating Humidity 10 - 90% RH; non-condensing
Operating Temperature 5 - 122 °F (-15 - 50 °C)
Output Specifications N.O. 1 A @ 30 VAC/DC
Outputs Switch output
Product Certification UL | CE
Product Type Sensor
Range HX00 Series
Relay Coil Voltage None
Relay Contact Ratings None
Relay Poles/Throw None
Sensor Current Switch (Hawkeye)
Setpoint Fixed
Warranty 5 years
