H421SP | CT | SplitCore | 0-2400A | 4-20mA | Cal Span (Factory Calibrated 0-2000A) | Veris

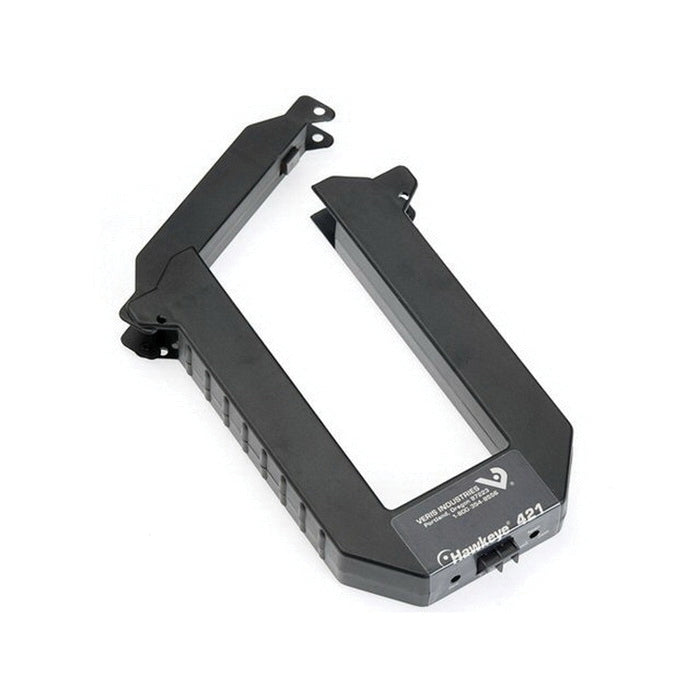

Hawkeye 1000 to 2400 A Input 4 to 20 mA DC Output High Analog Current Transducer, Split-Core, 5-1/2 x 2-1/2 in
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H421SP
Documents and manuals
Veris H421SP Documents
Overview
Details for H421SP
DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS
Hawkeye H421SP analog current transducers provide reliable load trending information for large motor loads (up to 2400 A), with a proportional 4 to 20 mA signal. The H421SP versions are factory-calibrated at a range specified by the customer.
- Split-core design for easy installation and fast retrofits
- No need for external CTs on large conductors
- Large openings for heavy conductors
- Loop powered 4 to 20 mA output
- 2-wire design reduces wiring cost
- Zero and span adjustments for field flexibility
- 30 mA at 12 to 30 VDC sensor power
- Lead-free
Hawkeye H421SP analog current transducers provide reliable load trending information for large motor loads (up to 2400 A), with a proportional 4 to 20 mA signal. The H421SP versions are factory-calibrated at a range specified by the customer.
- Split-core design for easy installation and fast retrofits
- No need for external CTs on large conductors
- Large openings for heavy conductors
- Loop powered 4 to 20 mA output
- 2-wire design reduces wiring cost
- Zero and span adjustments for field flexibility
- 30 mA at 12 to 30 VDC sensor power
- Lead-free
Specifications
| Item Number | H421SP |
| Brand | Veris |
| Application | Building Automation Systems |
| Current Core | Split Core |
| Current Measurement Accuracy | ±2% of F.S. above 240 A |
| Current Measurement Range | 0 - 2400 A |
| Current Sensor type | Current Transducer; AC |
| Electrical Wiring Size | 22 - 12 AWG (0.33 - 3.3 mm²) |
| Measurement Type | AC Current |
| Model | H421SP |
| Monitored Frequency Range | 50 - 60 Hz |
| Monitored Wire Size | 2.4" (61 mm) |
| Mounting | Split Core |
| Operating Humidity | 10 - 90% RH; non-condensing |
| Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
| Output Specifications | 4 - 20 mA |
| Outputs | Analog output |
| Product Type | Sensor |
| Range | High Current Series |
| Relay Coil Voltage | None |
| Relay Contact Ratings | None |
| Relay Poles/Throw | None |
| Sensor | Current Sensor (Hawkeye) |
| Warranty | 5 years |
