H421 | Hawkeye 0 to 2400 A Input 4 to 20 mA DC Output High Analog Current Transducer, Split-Core, 5-1/2 x 2-1/2 in | Veris

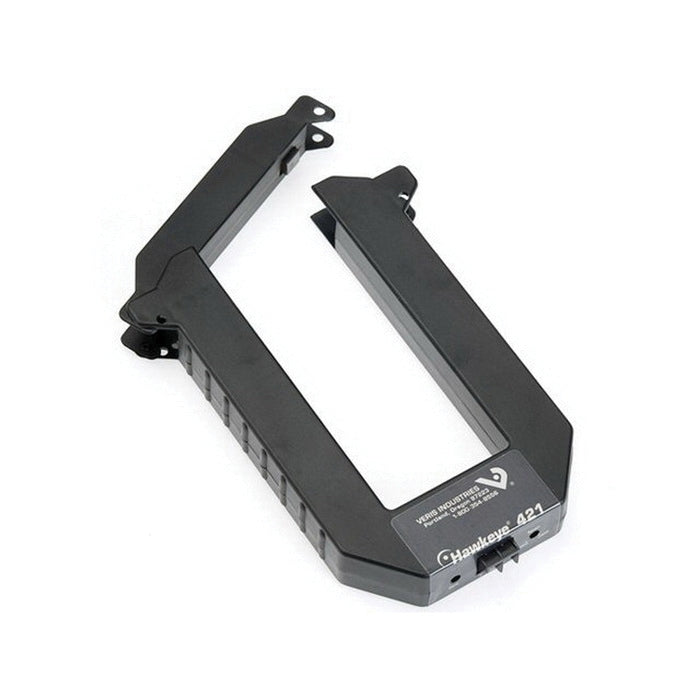

Hawkeye 0 to 2400 A Input 4 to 20 mA DC Output High Analog Current Transducer, Split-Core, 5-1/2 x 2-1/2 in

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H421

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris H421 Documents

Datasheet More Info

Overview

Details for H421

Hawkeye H421 analog current transducers provide reliable load trending information for large motor loads (up to 2400 A), with a proportional 4 to 20 mA signal. The H421 versions include a span potentiometer that allows each sensor to be calibrated for maximum resolution.

Split-core design for easy installation and fast retrofits
No need for external CTs on large conductors
Large openings for heavy conductors
Loop powered 4 to 20 mA output
2-wire design reduces wiring cost
Zero and span adjustments for field flexibility
30 mA at 12 to 30 VDC sensor power
Lead-free

Specifications

Item Number	H421
Brand	Veris
Application	Building Automation Systems
Current Core	Split Core
Current Measurement Accuracy	±2% of F.S. above 240 A
Current Measurement Range	0 - 2400 A
Current Sensor type	Current Transducer; AC
Electrical Wiring Size	22 - 12 AWG (0.33 - 3.3 mm²)
Measurement Type	AC Current
Model	H421
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	2.4" (61 mm)
Mounting	Split Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	4 - 20 mA
Outputs	Analog output
Product Type	Sensor
Range	High Current Series
Relay Coil Voltage	None
Relay Contact Ratings	None
Relay Poles/Throw	None
Sensor	Current Sensor (Hawkeye)
Warranty	5 years
