E50B1A | Pwr Mtr | DIN | Pulse Out Only | For U018CTs | Veris
Pulse Output Compact Power and Energy Meter

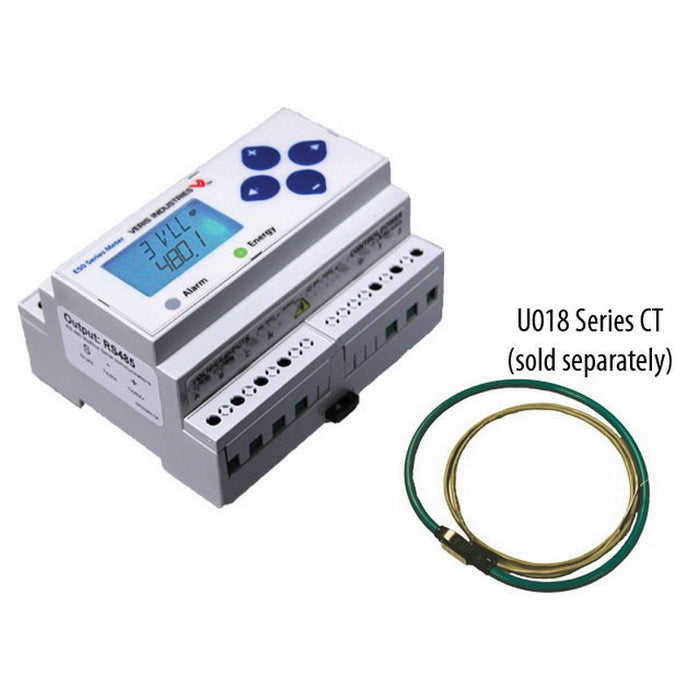

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to E50B1A
Overview
Details for E50B1A
The E50B1A DIN rail power meter provides a solution for measuring energy data with a single device. Inputs include control power, CT and 3-phase voltage. The LCD screen on the faceplate allows instant output viewing. These meters include built-in CT integrators and CT power supplies. The E50B1A work only with Veris E683 series rope style CTs. The meter is housed in a plastic enclosure suitable for installation on T35 DIN rail according to EN 50022. The E50 can be mounted with any orientation over the entire ambient temperature range, either on a DIN rail or in a panel. The meter is not sensitive to CT orientation to reduce installation errors.
- 2 pulse output (normally open)
- Mounting location - not suitable for wet locations, for indoor use only
Specifications
| Item Number | E50B1A |
| Brand | Veris |
| Accuracy | +/- 0.2% |
| Communication | Pulse kYZ |
| Dimensions | 3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H |
| Display Type | LCD |
| Environmental Conditions | Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m |
| Frequency Rating | 50 - 60 Hz |
| Metering Product Family | E50 Power Meter |
| Monitored Voltage Range | 90 - 600 VAC |
| Mounting | Din-Rail |
| Operating Temperature | -22 - 158 °F |
| Output Specifications | Pulse: 30 VAC/VDC; 100 mA Maximum (NO) |
| Power Monitoring | E5x Series Power and Energy Meters |
| Product Type | Compact Power and Energy Meter |
| Range | E50 |
