CWE2 | Economy Wall Air Quality Sensor | Veris

Sensor, CO2, Economy, Wall

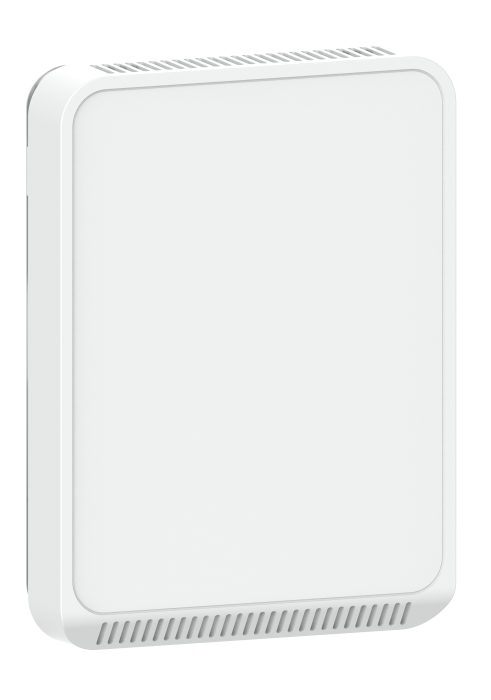

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CWE2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris CWE2 Documents

Datasheet More Info

Overview

Details for CWE2

The CWE2 Series of air quality sensors for living space are for use with BAS controllers designed to accept 4 to 20mA, 0 to 5 Vdc or 0 to 10 Vdc outputs. These sensors measure CO2 levels using a dual-beam, non-dispersive infrared (NDIR) technology. The CWE2 Series Economy sensor has an accuracy of ±30 ppm ±3% of measured value, features 2-wire 4 to 20mA and 3-wire voltage outputs.

NDIR CO2 sensor
Lower Installation costs: 2 wire current outputs
Competitively priced sensors
Easy installation: large wiring terminals on baseplate screw simplify installation and service
Flexibility: field selectable outputs
Easy to maintain: self calibrating

Specifications

Item Number	CWE2
Brand	Veris
CO2 Measurement Accuracy	±30 ppm ±3% of measured value
CO2 Measurement Range	0 to 2000ppm
CO2 Measurement Repeatability	±20 ppm ±1% of measured value
CO2 Measurement Resolution	1 ppm
CO2 Response Time	=75 seconds for 90 degree step change
CO2 Sensor Type	Dual beam on-dispersive infrared (NDIR); diffusion sampling
Color	Matte White
Electrical Wiring Size	Screw terminals; 18-24 AWG
Enclosure Material	High impact ABS plastic
Humidity Measurement Accuracy	±2% from 10 to 80% RH @ 25°C (77 °F)
Input Specifications	Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz
IP Protection	IP20
Measurement Type	CO2
Operating Current	20mA
Operating Humidity	0 to 95% RH non-condensing
Operating Temperature	0 to 50 °C (32 to 122 °F)
Output Specifications	Selectable 4 to 20 mA (2-wire); 0 to 5 V (3-wire); 0 to 10 V (3-wire)
Outputs	Analog
Standards EMC	EN61000 Series - industrial immunity
Standards	CE; UL 916; RCM; ICES-003. REACH; RoHS
Warranty	3 Years
