AG04 | Gas Platform Sensor,CO/NO2 Combination | Veris

+/-5% Accuracy Combination CO and NO2 Sensor, 0 to 500 ppm CO, 0 to 5 ppm NO2

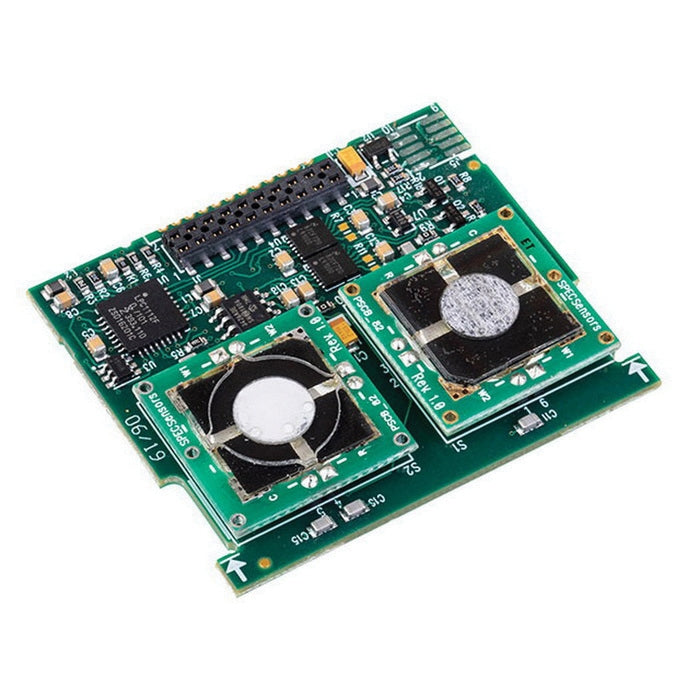

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AG04

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris AG04 Documents

More Info

Overview

Details for AG04

The AG04 carbon monoxide (CO) and nitrogen dioxide (NO2) sensing element is designed to work with the Veris GWNP series (BACnet/Modbus Output) gas platform unit to provide accurate monitoring of CO and NO2 levels. Common sources of CO include automobile exhaust from gasoline engines, gasoline powered furnaces, gasoline powered water heaters, and gasoline generators. Common sources of NO2 include automobile exhaust from diesel engines and diesel powered generators. The sensor is calibrated at the factory, so no field calibration is needed. The AG04 is warranted to meet accuracy specifications for two years after the date of manufacture.

Specifications

Item Number	AG04
Brand	Veris
Application Zone	Parking Garage \| Plant Room \| Living Space
Application	Parking Garage \| Space Gas Detection
CO Measurement Accuracy	±5% of F.S.
Measurement Type	CO \| NO2
NO2 Measurement Accuracy	±5% of F.S. at 25 °C
NO2 Measurement Range	0 - 20 ppm
NO2 Measurement Resolution	0.1 ppm
NO2 Sensor Type	Electrochemical
Operating Humidity	0 - 90% RH; non-condensing
Operating Temperature	-4 - 122 °F (-20 - 50 °C)
Product Certification	CE \| ETL
Product Type	Sensor Module
Range	AG for GWN
Standards EMC	UL 61010-1
Warranty	2 years (from date of manufacture)
