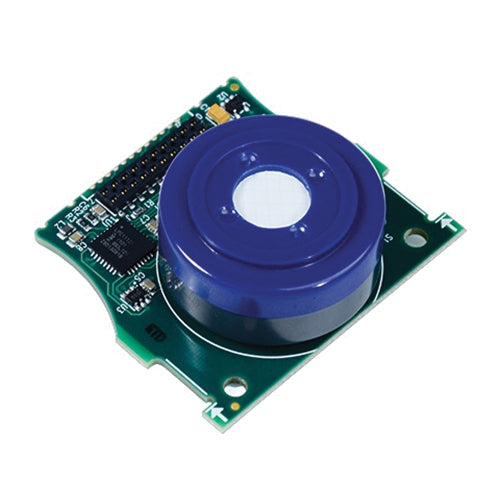

AG02 | Gas Platform Sensor | Nitrogen Dioxide | Veris

+/-5% Accuracy NO2 Sensor, 0 to 15 ppm

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AG02

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris AG02 Documents

Datasheet More Info

Overview

Details for AG02

The AG02 nitrogen dioxide (NO2) sensing element is designed to work with the Veris GWN series gas platform unit to provide accurate monitoring of NO2 levels. Common sources of NO2 include exhaust from diesel engines and diesel powered generators. The sensor is calibrated at the factory, so no field calibration is needed. The AG02 is warranted to meet accuracy specifications for two years from the date of manufacture.

NO2 sensor, NO2 sources include exhaust from diesel engines and diesel powered generators

Specifications

Item Number	AG02
Brand	Veris
Application Zone	Parking Garage \| Plant Room \| Living Space
Application	Parking Garage \| Space Gas Detection
Measurement Type	NO2
NO2 Measurement Accuracy	±5% of F.S. at 25 °C
NO2 Measurement Range	0 - 15 ppm
NO2 Measurement Resolution	0.1 ppm
NO2 Sensor Type	Electrochemical
Operating Humidity	0 - 90% RH; non-condensing
Operating Temperature	-4 - 122 °F (-20 - 50 °C)
Product Certification	CE \| ETL
Product Type	Sensor Module
Range	AG for GWN
Sensor	CO Carbon Monoxide
Standards EMC	UL 61010-1
Warranty	2 years (from date of manufacture)
