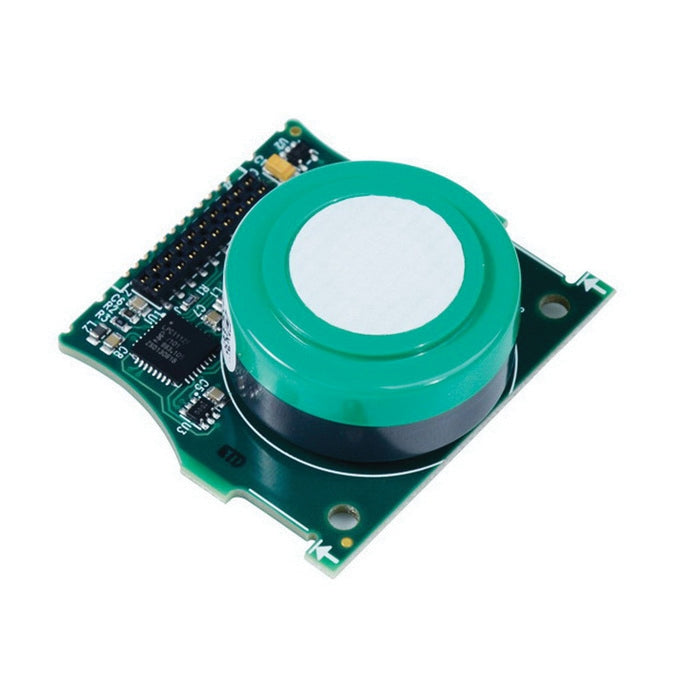

AG01 | Gas Platform Sensor | Carbon Monoxide | Veris

+/-3% Accuracy CO Sensor, 0 to 300 ppm

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AG01

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris AG01 Documents

Datasheet Installation Guide More Info

Overview

Details for AG01

The AG01 carbon monoxide (CO) sensing element is designed to work with the Veris GWN series gas platform unit to provide accurate monitoring of CO levels. Common sources of CO include automobile exhaust from gasoline engines, gasoline powered furnaces, gasoline powered water heaters, and gasoline generators. The sensor is calibrated at the factory, so no field calibration is needed. The AG01 is warranted to meet accuracy specifications for 2 years after the date of manufacture.

CO sensor, 3% accuracy, CO sources include exhaust from gasoline engines, gasoline powered furnaces, gasoline powered water heaters, gasoline generators

Specifications

Item Number	AG01
Brand	Veris
Application Zone	Parking Garage \| Plant Room \| Living Space
Application	Parking Garage \| Space Gas Detection
CO Measurement Accuracy	±3% of F.S.
CO Measurement Range	0 - 300 ppm
CO Measurement Resolution	1 ppm
CO Sensor Type	Electromechanical
Measurement Type	CO
Operating Humidity	0 - 90% RH; non-condensing
Operating Temperature	-4 - 122 °F (-20 - 50 °C)
Product Certification	CE \| ETL
Product Type	Sensor Module
Range	AG for GWN
Standards EMC	UL 61010-1
Warranty	2 years (from date of manufacture)
