UFLKP302 | For Belimo Butterfly Valve with PR and PKR Series Actuators | Belimo
Documents and manuals
Belimo UFLKP302 Documents
Overview
Details for UFLKP302
For Belimo Butterfly Valve with PR and PKR Series Actuators
Application

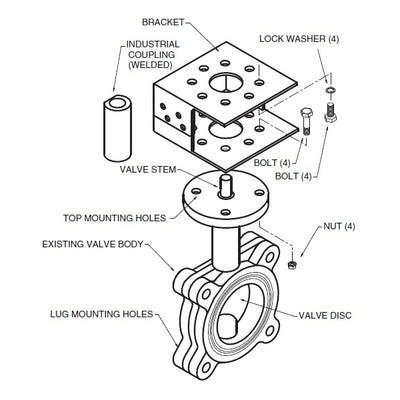

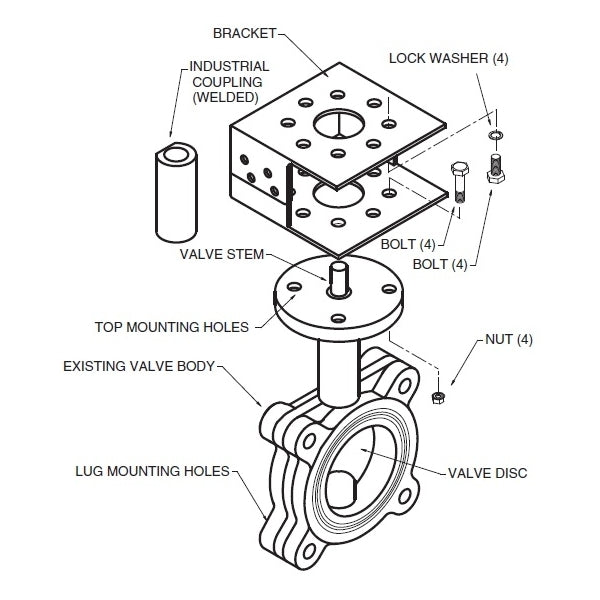

The UFLK/UBLK retrofit kit is designed to easily attach to the valve mounting pad on select competitor butterfly valves utilizing Belimo actuators. This kit will help to restore service without removal of the valve, saving down time. The retrofit kit is available in various configurations for use with both 2-way and 3-way valves utilizing single or dual actuation where applicable.
Operation
The UFLK and mounted actuator(s) are capable of rotating 90° in both CW and CCW directions. This allows the disc to fully open or close. When directional needs vary, the actuator’s directional switch can be flipped to change the rotation. The SY/PR is NEMA 4X rated and can be used outdoors.
Default/Configuration
The actuator is sold separately from the linkage. This allows users to select any actuator with the desired control signal. Since the linkage utilizes standard airside actuators, they can be purchased at any time and mounted in the field.
Specifications
Item Number | UFLKP302 |
Brand | Belimo |
