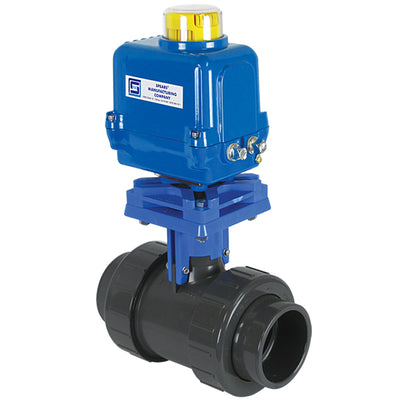

21102A112-015 | 1-1/2 CPVC TRUE UNION 2000 INDUSTRIAL BALL VALVE REINFORCED THREAD EPDM 115V NEMA4 75% | (PG:502) Spears

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 21102A112-015

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Spears 21102A112-015 Documents

Dimensional Data Catalog Page

Overview

Details for 21102A112-015

1-1/2 CPVC TRUE UNION 2000 INDUSTRIAL BALL VALVE REINFORCED THREAD EPDM 115V NEMA4 75%

Description

Industrial grade True Union design, 1/4-turn shutoff for a wide range of applications. Full-featured actuator can be custom configured with add-on accessories. Use part numbers on following page and see Electric Actuator Accessories for Ball Valves.

Blocked Seal Carrier
Double O-ring Stem Seal
PTFE Seats
1/2" - 4" 235 psi @ 73°F (23°C)
6" and all flanged 150 psi @ 73°F (23°C)
115 VAC standard, optional voltages available
Illuminated Position Indicator

Heater
2-Position Operation with 2-SPDT Limit Switches
Additional set dry contacts SPDT limit Switches
NEMA 4 Enclosure, Powder Coated
Declutchable Manual Override 4" through 6"
Basic Manual Override 1/2" through 3"
(Declutchable Available)

Specifications

Item Number	21102A112-015
Brand	Spears
Category	Actuated Valves Product
Contruction	Socket
Joint	CPVC
O-Ring	EPDM
Size	1-1/2
Subcategory	Premium Actuated True Union 2000 Industrial Ball Valve - Electric
Type	Premium Actuated True Union 2000 Industrial Ball Valve - Electric
