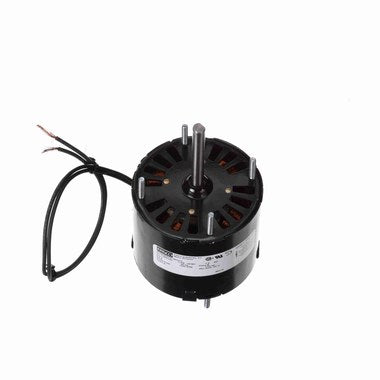

D189 | Motor Fan 1/20 Horsepower 1500 Revolutions per Minute 230 Volt 3.3 Inch Shaded Pole Motor | Fasco Motors
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to D189
Documents and manuals
Fasco Motors D189 Documents
Overview
Details for D189
Motor Fan 1/20 Horsepower 1500 Revolutions per Minute 230 Volt 3.3 Inch Shaded Pole Motor
Specifications
| Item Number | D189 |
| Brand | Fasco Motors |
| Amperage | 0.90AMP |
| Bearing Type | Sleeve |
| Collection | Motors |
| Diameter | 3.3IN |
| Duty | Air Over |
| Electrical Type | Shaded Pole Motor |
| Enclosure | Open Air Over |
| Frequency | 60HZ |
| Horsepower | 1/20HP |
| Insulation Class | B |
| Mounting Type | Extended Studs |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overload Protection | Thermally Protected |
| Phase | 1 |
| Product Type | Fan |
| Rotation | Counterclockwise Shaft End |
| Shaft Type | Flat |
| Speed | 1500RPM |
| Voltage | 230V |
