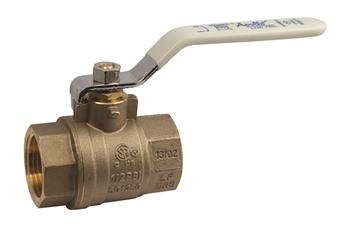

94ALF10301A | 94ALF-100 Series 1/2" Lead Free Two-Piece Female Full Port Brass Ball Valve | Apollo Products

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 94ALF10301A

Jump to: Documents Overview Specifications

Documents and manuals

Apollo Products 94ALF10301A Documents

Specification Sheet Installation Manual

Overview

Details for 94ALF10301A

With multi-agency approvals, the Apollo 94ALF-100 Series forged brass ball valves are ideal for flow control applications including gas, fuels, fire protection and general plumbing and HVAC applications including potable water. The valves are ANSI 3rd party Lead Free certified. This 1/2" two-piece, full port ball valve features corrosion-resistant brass construction with a standard lever handle and female NPT threads for use with male threaded pipes. Rated for 600 CWP (psig).

Lead free, ANSI 3rd Party certified
Full-port
Blow-out proof stem design
Adjustable stem packing nut
Silicone free
100% factory tested

94ALF-100 Series 1/2" Lead Free Two-Piece Female Full Port Brass Ball Valve

Specifications

Item Number	94ALF10301A
Brand	Apollo Products
Collection	Ball Valves
End Connection	NPT
End to End Distance	2.05IN
Handle Type	Lever
Material	Lead Free Brass
Port Type	Full Port
Pressure	600PSI CWP
Product Type	2-Piece
Seal Material	PTFE
Size	1/2IN
Temperature	-20 to 366DEG F
