8331 | Motor Condenser Fan 1/4 Horsepower 1625 Revolutions per Minute 380-420-460 Volt 5.6 Inch Permanent Split Capacitor | Us Motor

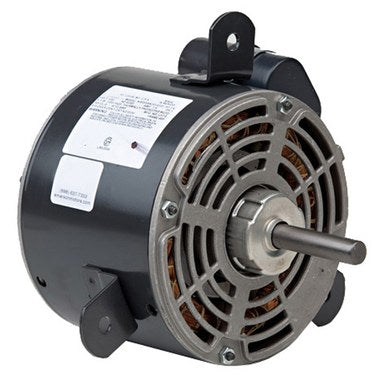

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8331
Overview
Details for 8331
Motor Condenser Fan 1/4 Horsepower 1625 Revolutions per Minute 380-420-460 Volt 5.6 Inch Permanent Split Capacitor
Specifications
| Item Number | 8331 |
| Brand | Us Motor |
| Amperage | 0.8/.095AMP |
| Bearing Type | SAB |
| Collection | Condenser Fan Motors |
| Diameter | 5.6IN |
| Electrical Type | Permanent Split Capacitor |
| Enclosure | Open Air Over |
| Frame Type | 48Y |
| Frequency | 50/60HZ |
| Horsepower | 1/4HP |
| Insulation Class | A |
| Mounting Type | 3 Lugs |
| Number of Poles | 4P |
| Number of Speeds | 1SPD |
| Overload Protection | Automatic Reset Thermal |
| Product Type | Condenser Fan |
| Rotation | Clockwise Lead End |
| Speed | 1625RPM |
| Voltage | 380-420-460V |
