2275-630 | Transformer Solid State Ignition 630 120 Volt for Carlin 99/100/101/CRD Burners | Allanson Transformers
Allanson’s ignitors are designed for constant duty and provide the most reliable ignition source for commercial, residential, and industrial applications.

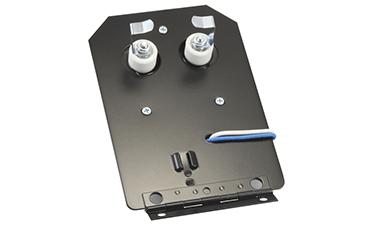

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 2275-630
Overview
Details for 2275-630
Transformer Solid State Ignition 630 120 Volt for Carlin 99/100/101/CRD Burners
Features:- Eliminates need for other mounting plates helping to minimize inventory requirements
- History of excellent operation under brownout conditions
- Quick & easy to change
- Energy efficient
- Low operating temperature
- Ships complete with required hardware
- Meets American and European noise emission standards offering superior EMI and RFI protection
- Storage Temperature: -40°C to 80°C
- Operating Temperature:?-30°C to 40°C
- Operating Relative Humidity: 90%
- Loading Air Gap: 1/16″ – 3/16″
- Dimensions 4.06″ x 4.92″ x 2.91″
Specifications
| Item Number | 2275-630 |
| Brand | Allanson Transformers |
| Application | Carlin 99/100/101/CRD Burners |
| Application | OIL |
| Approvals | CSA and UL Listed |
| Burner Type | 100; 101; 99; Card Miser |
| Collection | Oil Burner Parts |
| Current | 28mA |
| Frequency | 50/60HZ |
| Grounding | Mid Point Ground |
| Hinge Location | End Hinge |
| Hv Terminal | Spring Clip Contact |
| Input Frequency | 50/60Hz |
| Input Voltage | 120V |
| Poles | Double |
| Primary Voltage | 120V |
| Product Type | Solid State Ignition 630 |
| Secondary Voltage | 17.5 kVpk |
| Secondary Voltage | 17500V |
| Voltage | 150VA |
