3RV20111JA10 | CIRCUIT BREAKER S00 7-10A SCREW MSP | Siemens Electrical

Switch_MOTOR 3RV2011-1JA10-3RV2011-1JA10_7...10A_10A_690V

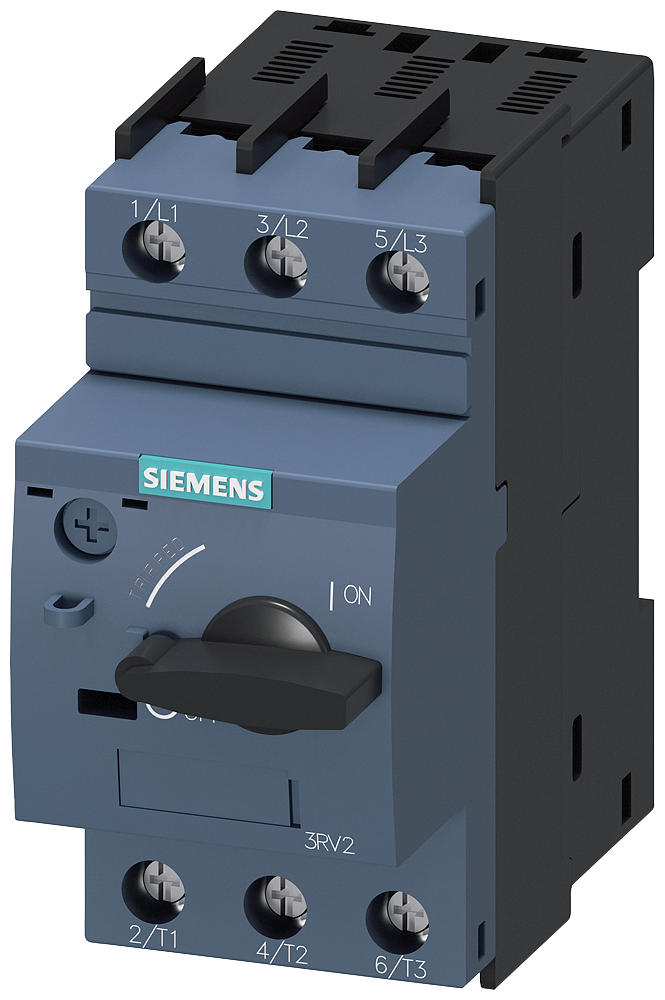

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 3RV20111JA10

Item Number	3RV20111JA10
Brand	Siemens Electrical
Connection type	Screw connection
Greatest value of overload release adjustment range	10 ampere
Height	2.050 IN
Integrated auxiliary switch present	FALSE
Integrated undervoltage tripper present	FALSE
Length	4.5 IN
Lowest value of setting range for overload tripper	7 ampere
Manner of using	Toggle
max. rated operating voltage	690 volt
min. rated operating voltage	690 volt
Number of auxiliary contacts as opener	0
Number of auxiliary contacts as shutter	0
Pole number	3
Power loss per pole; current-dependent [PlIp]	3.1 watt
Protection type IP	IP20
Rated current [In] for the power loss specification	10 ampere
Rated operating power with AC-3; 230 V	2 kilowatt
Rated operating power with AC-3; 400 V	4 kilowatt
Rated permanent current Iu	10 ampere
rated service short-circuit breaking capacity Ics at 400 V; 50 Hz	10 ampere
Release system	magnetic
Sensitive to phase failure	TRUE
suitable for mounting onto standard rails	FALSE
Weight	0.770 LB
Width	4 IN
