3RT20371AK60 | CONTACTOR S2 65A 120VAC SCREW 1NO/1NC | Siemens Electrical

Contactor,AC3 30KW/400V, 1NO+1NC,110VAC 50HZ/120v 60HZ, 3-pole, size s2, screw terminal

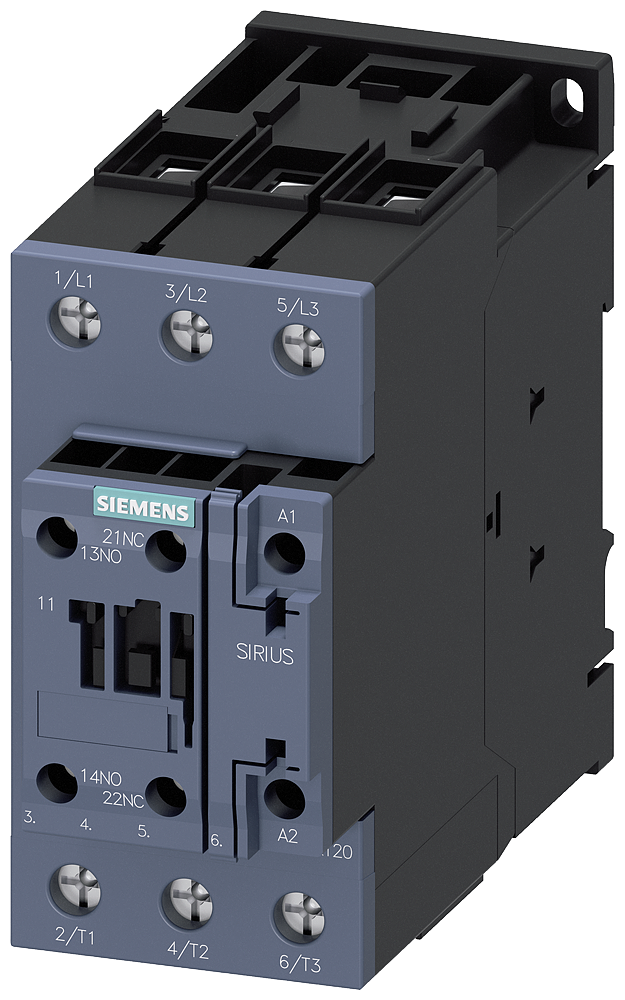

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for 3RT20371AK60

Item Number	3RT20371AK60
Brand	Siemens Electrical
Height	5.650 IN
Length	7.900 IN
Modular version	TRUE
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Number of main contacts as normally open contact	3
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	120 V
Rated operation current Ie at AC-1; 400 V	80 A
Rated operation current Ie at AC-3; 400 V	65 A
Rated operation current Ie at AC-4; 400 V	55 A
Rated operation power at AC-3; 400 V	30 kW
Rated operation power NEMA	36.7749375 kW
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Weight	2.190 LB
Width	4.5 IN
