3RT1056-6AF36 | CONTACTOR S6 185A 110-127VUC 3P BAR | Siemens Electrical
Contactor,IEC,Sirius,Standard 3 Pole,Non-Reversing 110 - 127 AC/DC Coil Frame Size S6,185A Panel Mount 2 NO <(>&<)> 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 5

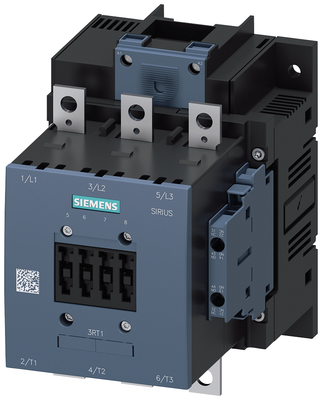

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 3RT1056-6AF36
Documents and manuals
Siemens Electrical 3RT1056-6AF36 Documents
Overview
Details for 3RT1056-6AF36
Specifications
| Item Number | 3RT1056-6AF36 |
| Brand | Siemens Electrical |
| Height | 5.100 IN |
| Length | 8.450 IN |
| Modular version | TRUE |
| Number of auxiliary contacts as normally closed contact | 2 |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of main contacts as normally open contact | 3 |
| Rated control supply voltage Us at AC 50HZ | 110 V |
| Rated control supply voltage Us at AC 60HZ | 110 V |
| Rated control supply voltage Us at DC | 110 V |
| Rated operation current Ie at AC-1; 400 V | 215 A |
| Rated operation current Ie at AC-3; 400 V | 185 A |
| Rated operation current Ie at AC-4; 400 V | 160 A |
| Rated operation power at AC-3; 400 V | 90 kW |
| Rated operation power at AC-4; 400 V | 90 kW |
| Rated operation power NEMA | 110.3248125 kW |
| Type of electrical connection of main circuit | Rail connection |
| Voltage type for actuating | AC/DC |
| Weight | 7.500 LB |
| Width | 9 IN |
