SKD62U | Flowrite Electro-Hydraulic Actuator, 24Vac, Proportional, SR, 3/4
$665.36
Brand: SiemensSKU: SKD62U
List Price
$2,110.57
$665.36
Availability: IN STOCK
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

Email

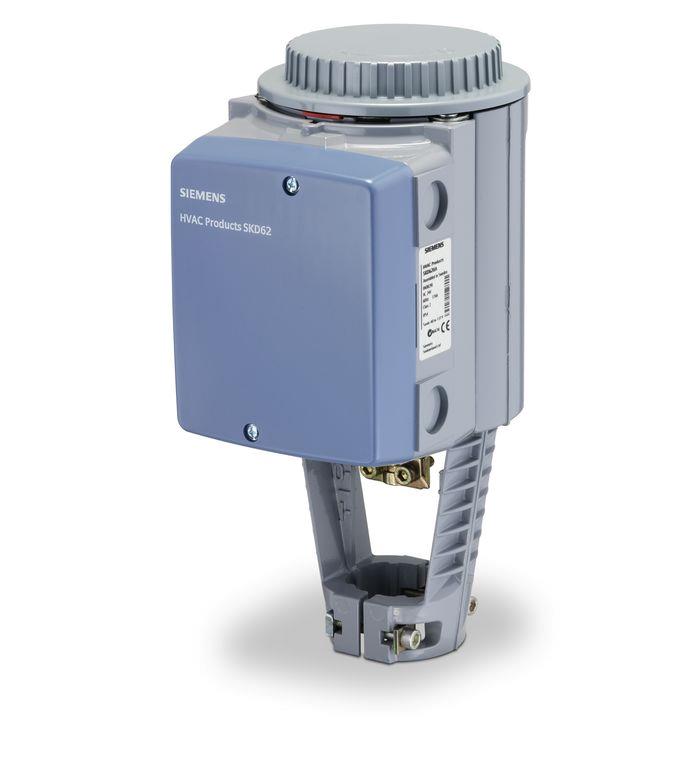

SKD62U | Flowrite Electro-Hydraulic Actuator, 24Vac, Proportional, SR, 3/4" Stroke | Siemens

Siemens | SKD62U
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SKD62U
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens SKD62U Documents

Datasheet(Electrohydraulic actuators SKD..)Datasheet(Flowrite 599 Series 2-1/2 to 6-Inch Valves ANSI 125 Submittal Sheet)Datasheet(Flowrite SKD Valve Proportional Control Technical Instructions)Declaration of conformity(Test report 10204-2.2. SKD... SKB... SKC..)Declaration of conformity(EU Declaration of Conformity SKD..)Declaration of conformity(RCM Supplier's declaration SKD..)Environmental Declaration(Environmental declaration for SKD60.. and SKD62..)Installation instruction(Auxiliary switch / Hilfsschalter ASC1.6)Installation instruction(SKD…U Electronic Valve Installation Instructions)Mounting instruction(Replacement electronics ACT..)Other datasheet(Electro-hydraulic actuators for valves: Modbus communication profiles)Commissioning Instruction(Einstellungsanleitung Standardelektronik SKD6... SKB6... SKC6..)Dimension Drawings(Stroke actuator. SKD... 2D drawings. dxf/dwg format)Dimension Drawings(Stroke actuator. SKD... 3D drawings. dwg. stp format) Installation Instructions More Info

Overview

Details for SKD62U

Flowrite Electro-Hydraulic Actuator, 24Vac, Proportional, SR, 3/4" Stroke

Specifications

Ambient temperature, operation
-15…50 °C
Degree of protection
IP54
Dimensions (W x H x D)
5 x 11.81 x 6.65 in
Medium temperature
-25…150 °C; 5…130 ºF
Mounting position
NEMA 1 (interior only), Upright
Position feedback
DC 0…10 V, 4…20 mA
Positioning signal
DC 0...10 V, DC 4...20 mA, 0...1000 Ohm
Positioning time
Open:30 s, Close:15 s
Spring return function
Spring return functionality
Stroke
20 mm
Operating voltage
19.2…31.2 V24 V#AC
Power consumption
14 VA
Positioning force
1000 N
