QFM3100 | Duct Relative Humidity Temperature Sensor, 2 percent accuracy, 0-10 Vdc | Siemens
$216.63
Brand: SiemensSKU: QFM3100
List Price
$570.08
$216.63
Availability: IN STOCK
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

Email

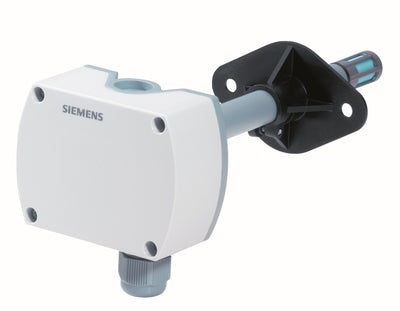

QFM3100 | Duct Relative Humidity Temperature Sensor, 2 percent accuracy, 0-10 Vdc | Siemens

Siemens | QFM3100
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QFM3100
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens QFM3100 Documents

Datasheet(Duct_Sensor QFM31... with 0…5 V output)Datasheet(Q-Series Duct Relative Humidity and Relative Humidity and Temperature Sensors Technical Specification Sheet)Datasheet(Duct Sensor QFM31xx Series Technical Instructions)Datasheet(Duct_Sensor QFM31... w/o 0…5 V output)Declaration of conformity(EU Declaration of Conformity QFM31xx)Declaration of conformity(RCM Supplier's declaration QAM21... / QFM...)Declaration of conformity(UK Declaration of conformity for QFM31xx)Declaration of conformity(Test report MTBF for QFM... QFA..)Declarations and Certificates(OSS Readme for QAE2164.010. QAE2164.015. QAM2161.040. QFM2100. QFM2120. QFM2160. QFM2160U. QFM3100. QFM3160. QFM3160D. QPM2102. QPM2102D. QPM2163. QPM1162. QPM1160)Environmental Declaration(Duct sensor for relative humidity and temperature)Environmental Declaration(Environmental declarations for QFM2100. QFM2160. QFM2160U. QFM3160. QFM3100. QFM3160D. QFM2120)Installation instruction(Q-Series Relative Humidity (RH) and Relative Humidity and Temperature (RH/T) Duct Sensors Installation Instructions)Mounting instruction(Duct sensor for rel. humidity / temperature QFM... with 0…5 V output)Mounting instruction(Duct sensor for rel. humidity / temperature QFM... w/o 0…5 V output) Installation Instructions More Info

Overview

Details for QFM3100

Duct Relative Humidity Temperature Sensor, 2 percent accuracy, 0-10 Vdc

Specifications

Immersion length
90…206 mm
Measurement range humidity
0…100 % r.h.
Signal output humidity
DC 0...10 V, DC 4...20 mA
Operating voltage
24 VAC, 13.5…35 VDC
Analog outputs
0-10 V
Measuring range
Humidity: 0 to 100% RH
Measurement accuracy
At 15…35 °C: ±0.6 K, 23 % r.h., 0…100 % r.h.: ±2 % r.h.
Dimensions (W x H x D)
80 x 88 x 39 (274) mm
