QFM2101 | Duct Relative Humidity Temperature Sensor, 5 percent accuracy, 4-20 mA | Siemens
$151.75
Brand: SiemensSKU: QFM2101
List Price
$399.33
$151.75
Availability: IN STOCK
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

Email

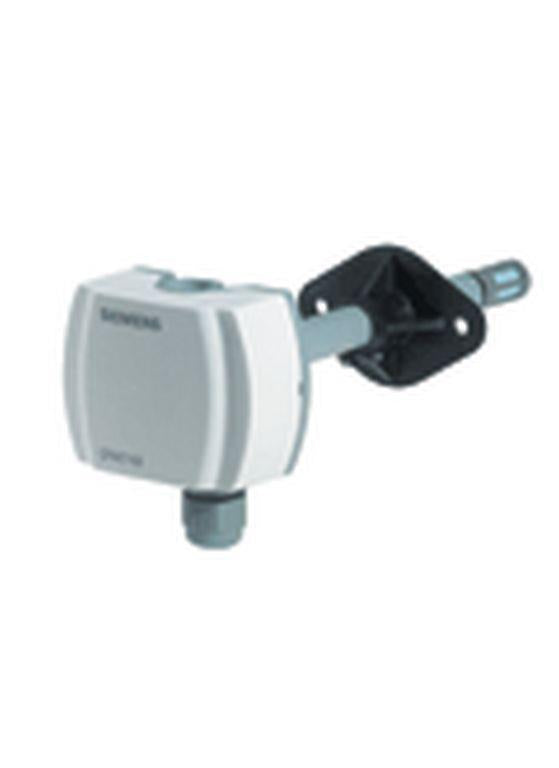

QFM2101 | Duct Relative Humidity Temperature Sensor, 5 percent accuracy, 4-20 mA | Siemens

Siemens | QFM2101
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QFM2101
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens QFM2101 Documents

Datasheet(Duct sensors QFM21... with 0…5 V output)Datasheet(Q-Series Duct Relative Humidity and Relative Humidity and Temperature Sensors Technical Specification Sheet)Datasheet(Duct Sensors QFM21xx Series Technical Instructions)Datasheet(Duct sensors QFM21... w/o 0…5 V output)Declaration of conformity(EU Declaration of Conformity QFM21xx)Declaration of conformity(RCM Supplier's declaration QAM21... / QFM...)Declaration of conformity(KC Certificate QFM2101)Declaration of conformity(UK Declaration of conformity for QFM21xx)Declaration of conformity(Test report MTBF for QFM... QFA..)Declarations and Certificates(OSS Readme for QAE2164.010. QAE2164.015. QAM2161.040. QFM2100. QFM2120. QFM2160. QFM2160U. QFM3100. QFM3160. QFM3160D. QPM2102. QPM2102D. QPM2163. QPM1162. QPM1160)Environmental Declaration(Duct sensor for relative humidity and temperature)Installation instruction(Q-Series Relative Humidity (RH) and Relative Humidity and Temperature (RH/T) Duct Sensors Installation Instructions)Mounting instruction(Duct sensor for rel. humidity / temperature QFM... with 0…5 V output)Mounting instruction(Duct sensor for rel. humidity / temperature QFM... w/o 0…5 V output) Installation Instructions More Info

Overview

Details for QFM2101

Duct Relative Humidity Temperature Sensor, 5 percent accuracy, 4-20 mA

Specifications

Immersion length
90…154 mm
Measurement range humidity
0…95 % r.h.
Time constant
Humidity: 20 s, Air v=2 m/s: 210 s
Signal output humidity
DC 4...20 mA
Operating voltage
13.5…35 VDC
Analog outputs
4-20 mA
Measuring range
Humidity: 0 to 95% RH
Measurement accuracy
At 15…35 °C: ±0.6 K, 23 % r.h., 30…70 % r.h.: ±3 % r.h.
Dimensions (W x H x D)
80 x 88 x 39 (222) mm
